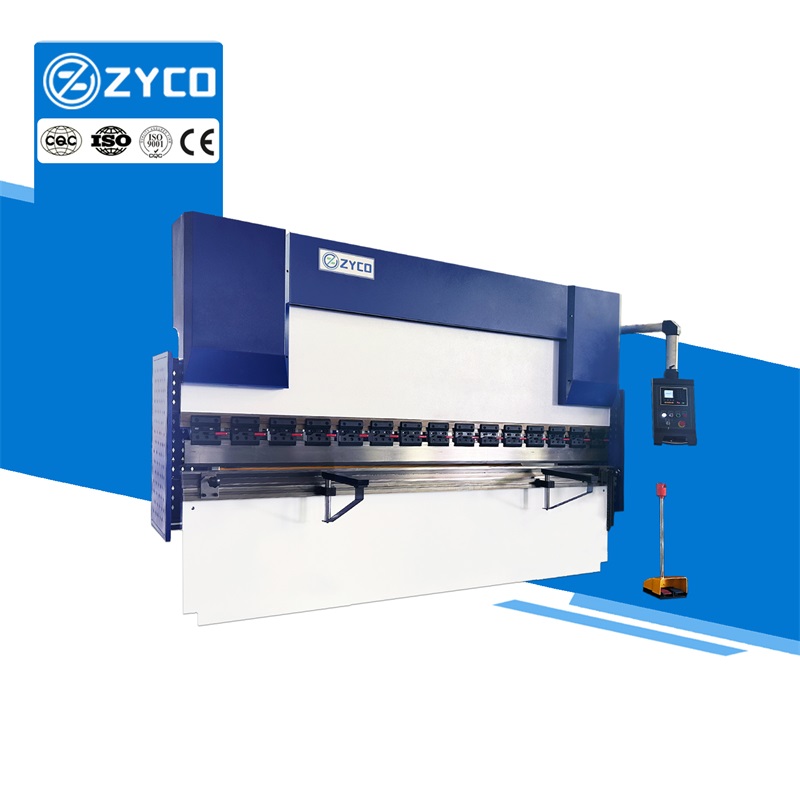

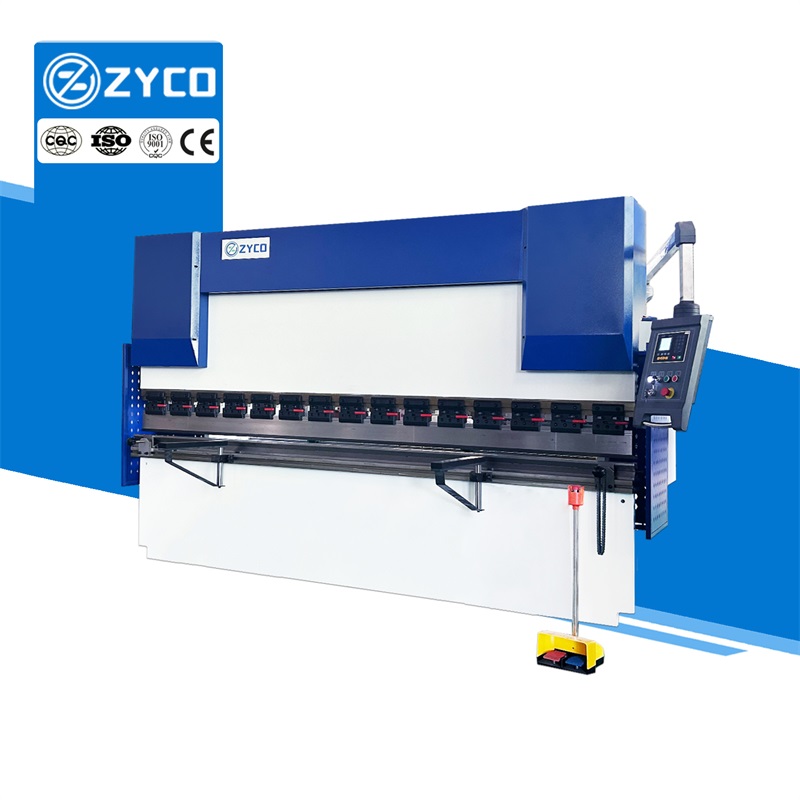

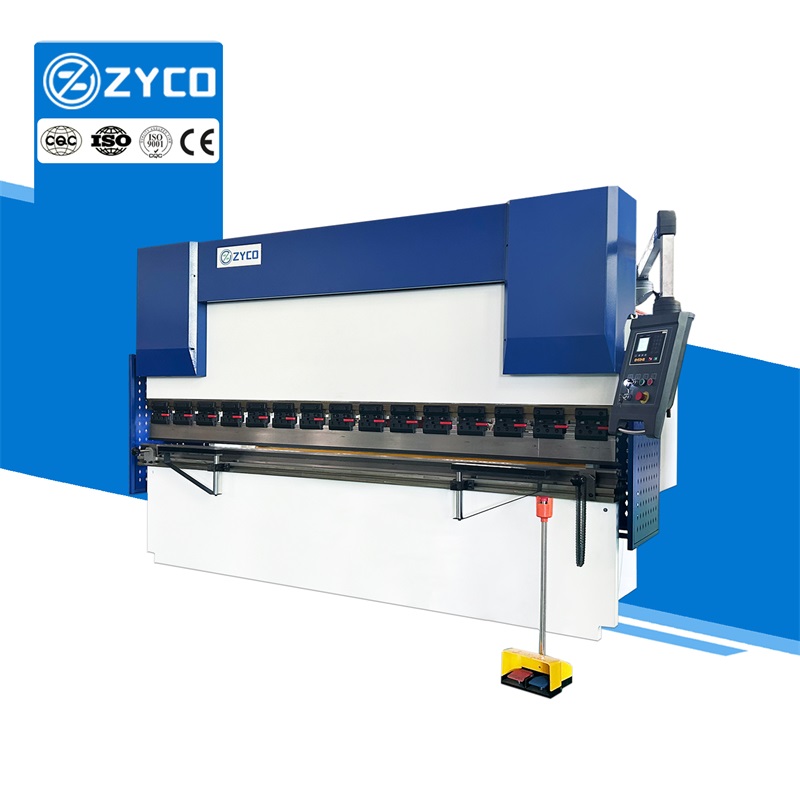

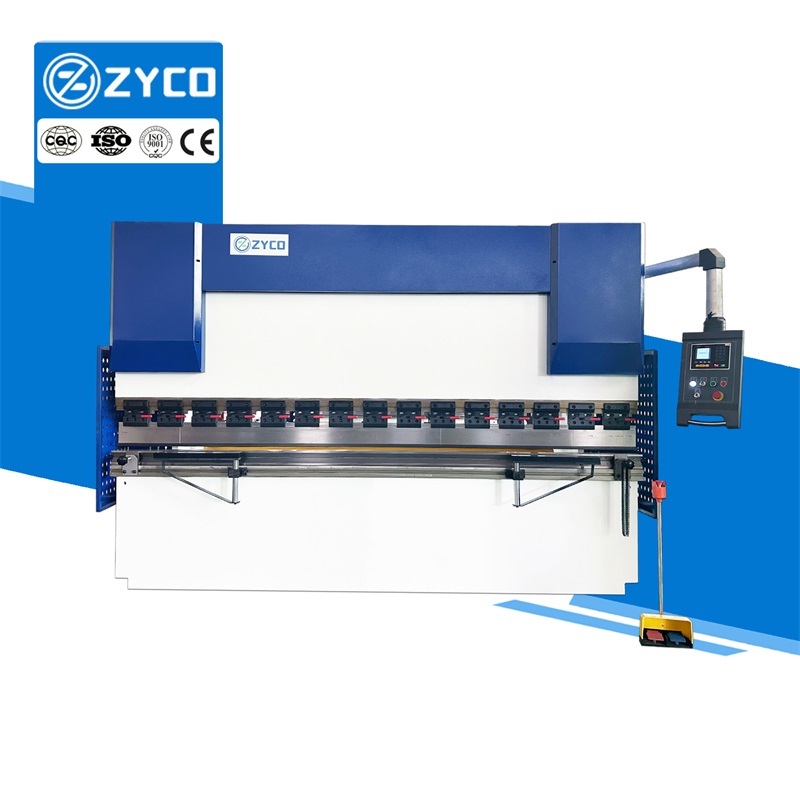

WC67K 40 80 100 200 Ton 3200mm E21 NC Sheet Metal Hydraulic Press Brake

WC67K 40 80 100 200 Ton 3200mm E21 NC Sheet Metal Hydraulic Press Brake

The E21 bending machine is the most economical and affordable equipment among the torsion shaft bending machines. It is widely used in various metal processing industries. For novices, it is easier to master. The E21 adopts a computer controller and sensor. The operator only needs to input the required Y-axis depth value and X-axis size, and the machine will automatically run to the position we input. The operation is very simple and convenient.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.The back gauge positioning function can be positioned in one direction or two directions, effectively eliminating the screw gap.

2. It has a retreat function, which effectively protects the back gauge.

3.The fast position teaching function can be adjusted in time when the position digital display error occurs.

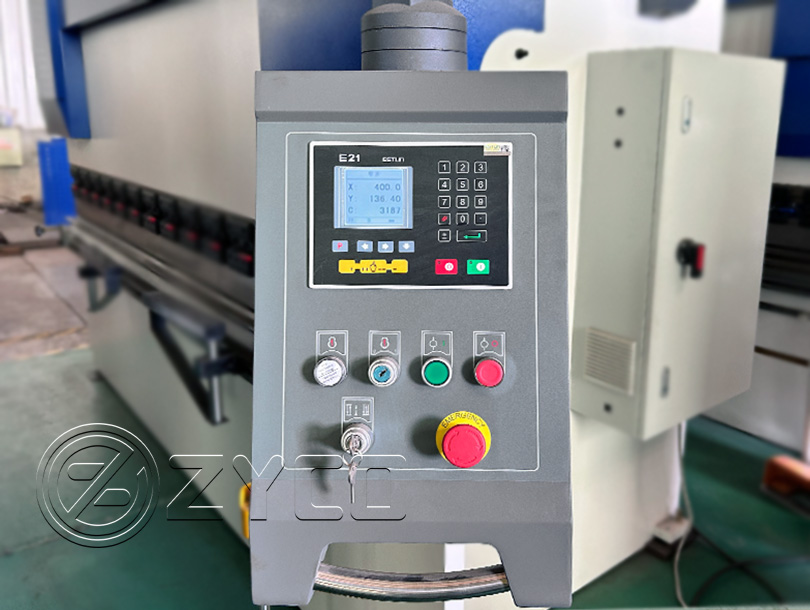

Control system

Efficient computing power and positioning function.

One-key parameter backup and restore function.

40 multi-step program storage space, each program has 25 steps.

View More +

Hydraulic system

Adopt German Rexrtoh valve group, high precision and long life.

The pressure of the hydraulic system can be adjusted according to specific actual needs so that it can meet the requirements of bending force.

View More +

Main motor

ZYCO adopts the famous Siemens motor, which has the advantages of high quality and long life.

Low noise and more energy-saving.

Brand selection, guaranteed after-sales.

View More +

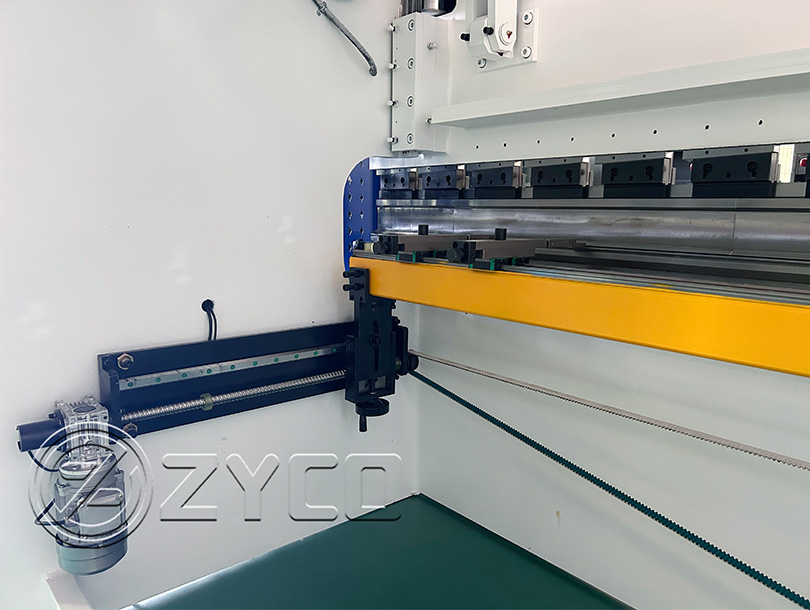

Back gauge

We use imported ball screws and linear guides instead of traditional screws. This choice improves the accuracy and consistency of our manufacturing process.

Our entire back gauge system is subjected to high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and prevent the loss of accuracy due to frame deformation.

View More +

Oil pump

The oil pump is made of high-strength cast iron and adopts a unique internal noise reduction design, making it less sensitive to oil pollution and extending its service life.

Advanced gear pump manufacturing process, with beautiful design and high-end performance.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger

6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system

11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
