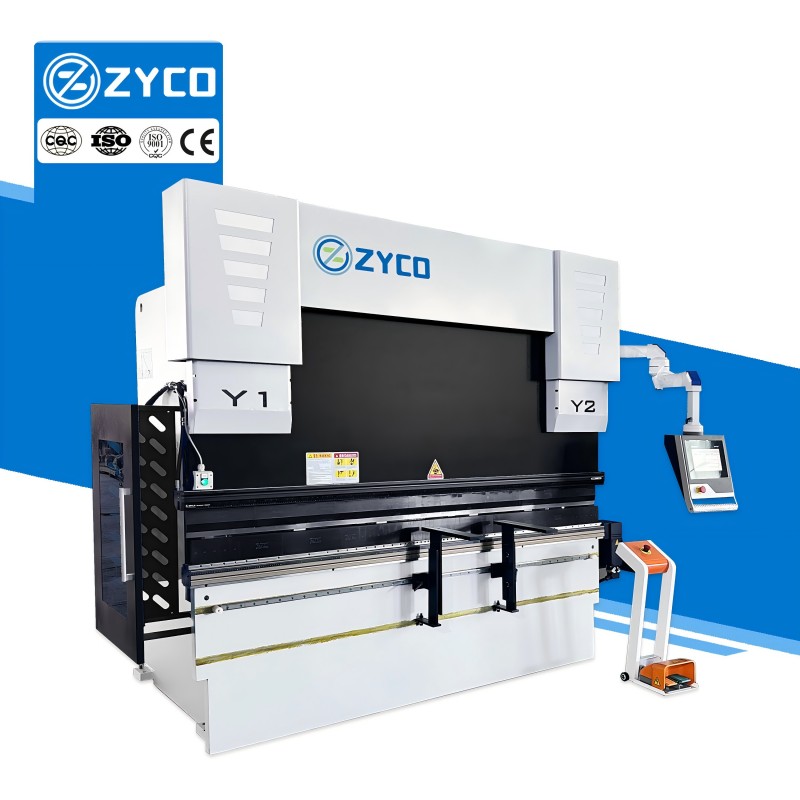

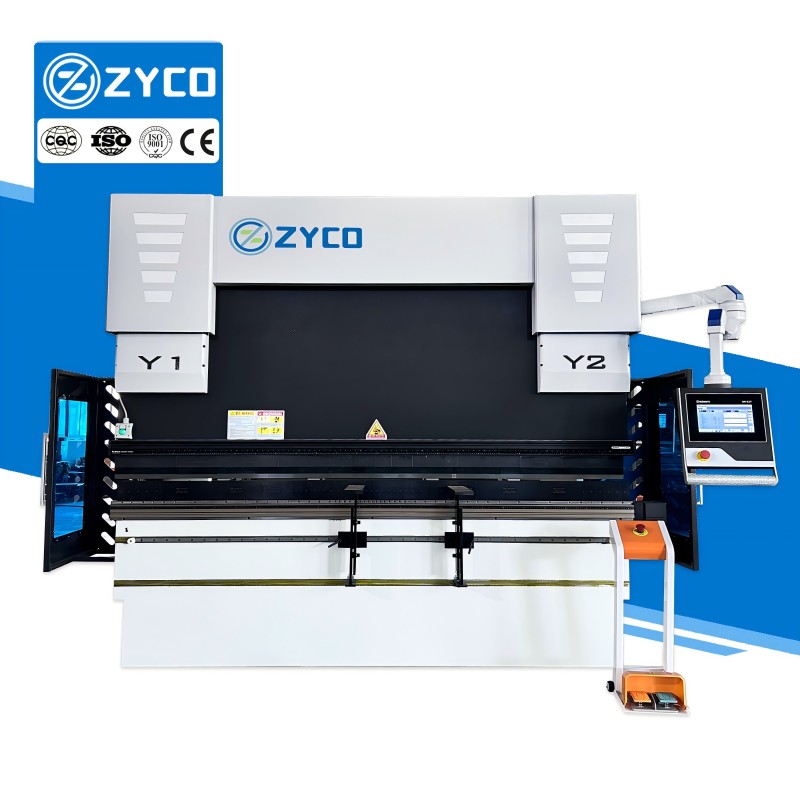

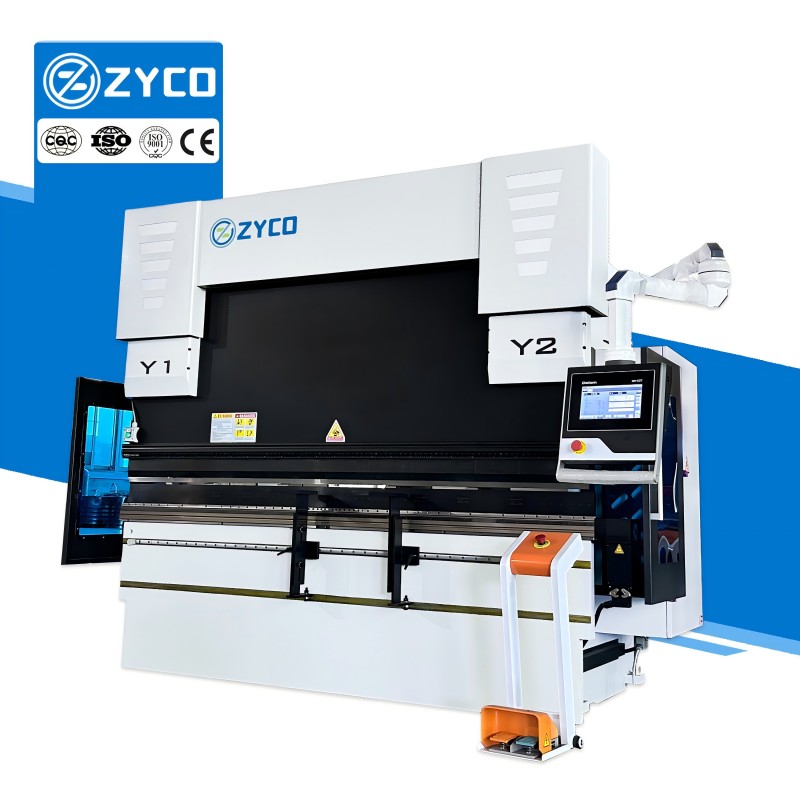

ZYCO Manufacturer DA53T Hydraulic Press Brake Machine for Sale

Precision Hydraulic Press Brake Machines

ZYCO Manufacturer DA53T Hydraulic Press Brake Machine for Sale

The DA53T electro-hydraulic press brake is a high-precision CNC machine designed for metal fabrication applications. Featuring rapid response and high-speed operation, this system significantly enhances manufacturing productivity. Its integrated closed-loop feedback mechanism continuously tracks bending parameters during operation, enabling instant correction of any deviations to maintain precise angular and positional accuracy throughout the forming process. The machine's advanced control technology ensures consistent performance in industrial production environments.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.Precision engineering: Featuring a state-of-the-art CNC control system, the DA53T electro-hydraulic press brake delivers exceptional accuracy in bend angles and positioning for consistent, high-quality results.

2.Versatile bending performance: With robust bending force and an extensive working range, this machine handles both thin and thick metal sheets with reliable efficiency, ensuring smooth operation across various applications.

3.User-friendly design: The DA53T is designed for ease of use, incorporating an intuitive touchscreen interface that simplifies operation and enhances productivity.

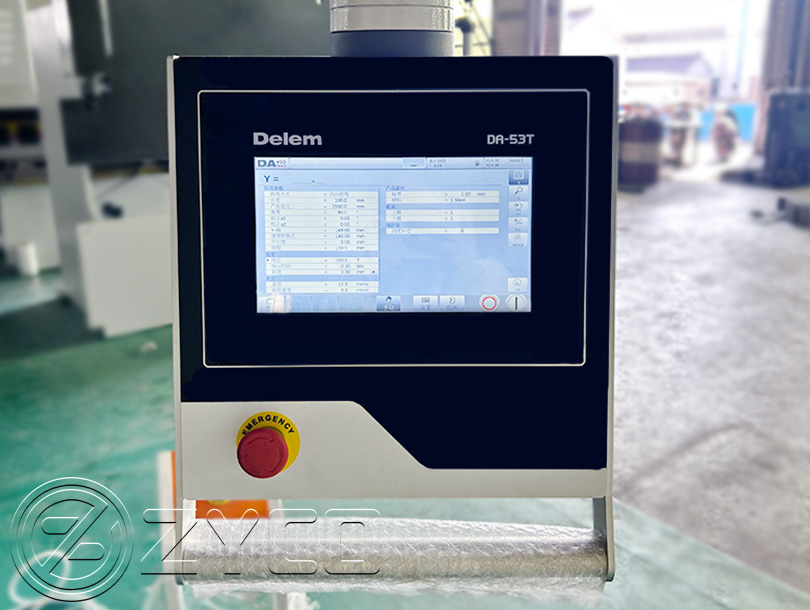

Control system

Advanced Y-axis control algorithm, which can control both closed-loop valves and open-loop valves.

It incorporates a vibrant 10.1-inch full-color TFT-LCD screen with high-definition resolution.

The equipment includes comprehensive preset databases for molds, materials, and products, compatible with either servo-driven or variable frequency drive operation.

View More +

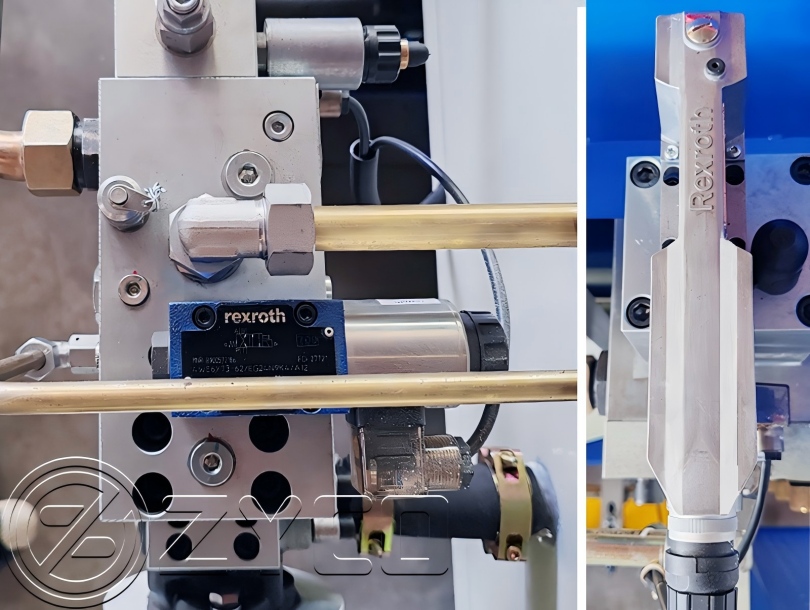

Hydraulic system

The machine incorporates a high-precision German Rexrtoh valve assembly known for its durability and extended service life.

The system allows for hydraulic pressure adjustment tailored to operational demands, ensuring optimal bending force performance.

Featuring an electro-hydraulic servo control system with synchronous operation, it maintains minimal hydraulic cylinder spacing while delivering excellent resistance to off-center loads.

View More +

Main motor

ZYCO utilizes premium Siemens motors renowned for their exceptional durability and superior performance.

These high-efficiency engines operate with minimal noise while delivering significant energy savings.

Our commitment to top-tier components ensures reliable product support and customer satisfaction.

View More +

Back gauge

To enhance precision and stability in production, we utilize high-quality imported ball screws and linear guideways rather than conventional screw mechanisms.

Our back gauge components are subjected to special high temperature tempering treatment. This process effectively eliminates the internal stress of the metal, improves its ductility and impact resistance, and reduces the accuracy deviation caused by the deformation of the structure over time.

View More +

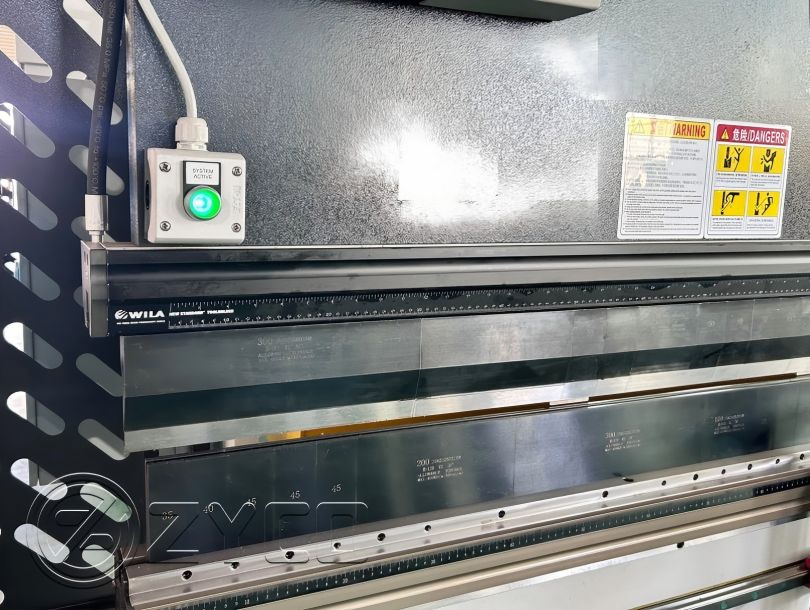

WILA clamping

Standardized components can be flexibly combined to match different workpiece shapes and sizes to meet diverse processing needs.

Precision mechanical structures (such as threads, levers or hydraulic/pneumatic drives) can achieve millimeter-level or even micron-level repeat positioning accuracy to ensure processing consistency.

Material is mostly high-strength alloy or steel structure with strong deformation resistance, suitable for heavy cutting or high-load conditions.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1 .Oil tank 2.Main motor 3.Grating Ruler 4.Electerical box 5.C type plate 6.Stopping finger 7.Back gauge

8.Servo motor 9.Wall panel 10.Valve 11.Hydraulic oil cylinder 12.Slider 13.CNC system 14.Quick Clamoing

15.Upper mold16.Lower mold 17.CNC automatic Crowning 18.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
