ZYCO
1. The back gauge has a positioning function, which can achieve unidirectional or bidirectional positioning and significantly reduce the screw gap.
2. Equipped with a retreat function, it can effectively protect the back gauge system.
3. It has a fast position teaching function. When the position value is displayed incorrectly, it can be taught and corrected in time.

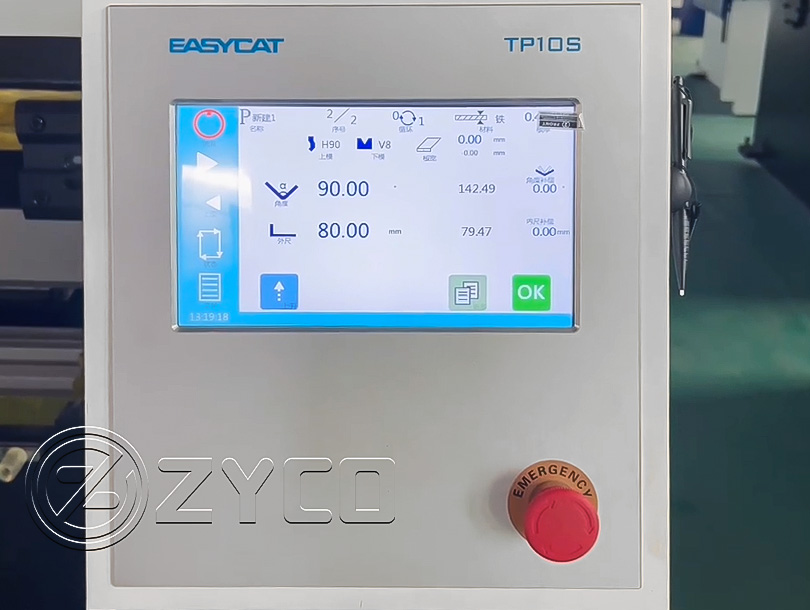

Control system
- Provide powerful computing power and precise positioning function.
- Support fast backup and recovery of parameters.
- Equipped with more than 500 program storage spaces, each program can store up to 40 steps.
View More +
Hydraulic system
- Use German Rexroth valve group, which has high precision and long service life.
- The hydraulic system pressure can be flexibly adjusted according to actual needs to meet different bending force requirements.
View More +
Main motor
- ZYCO uses world-renowned Siemens motors, which have excellent quality and long service life.
- Low operating noise and higher energy efficiency.
- Ensure brand selection and comprehensive after-sales service guarantee.
View More +

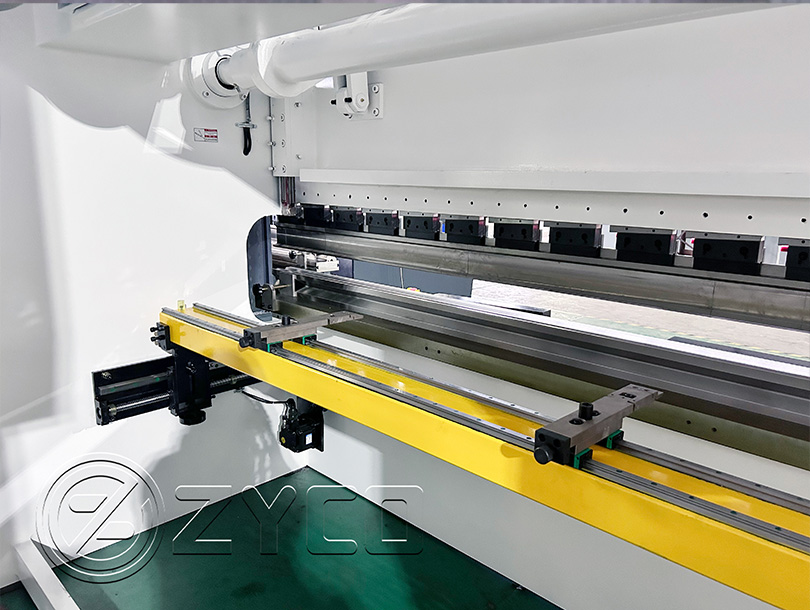

Back gauge
- We use imported ball screws and linear guides to replace traditional screws, which greatly improves manufacturing accuracy and consistency.
- The entire back gauge system is treated with high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and effectively prevent accuracy problems caused by frame deformation.
View More +
Oil pump
- The oil pump is made of high-strength cast iron and has a unique noise reduction design, making it insensitive to oil pollution and extending the service life of the equipment.
- Advanced gear pump technology, exquisite design and excellent performance.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
Q: Can you do OEM service?
A: Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment?
A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
Q: What about commissioning service?
A: We can offer commissioning service, the buyer need to afford plane tickets.
Q: Do you offer teaching & training?
A: Training at supplier's plant.
