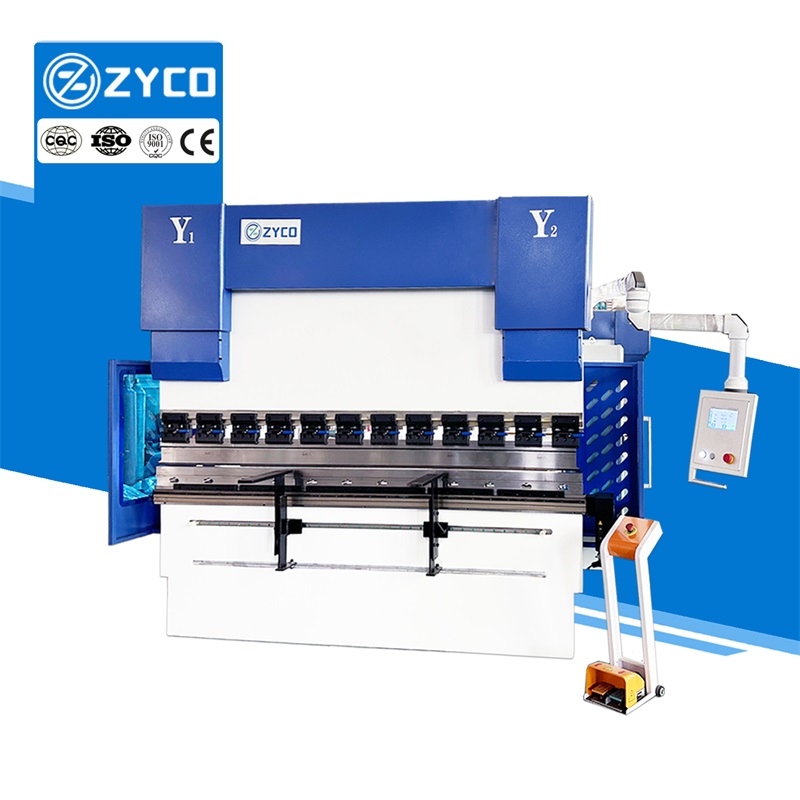

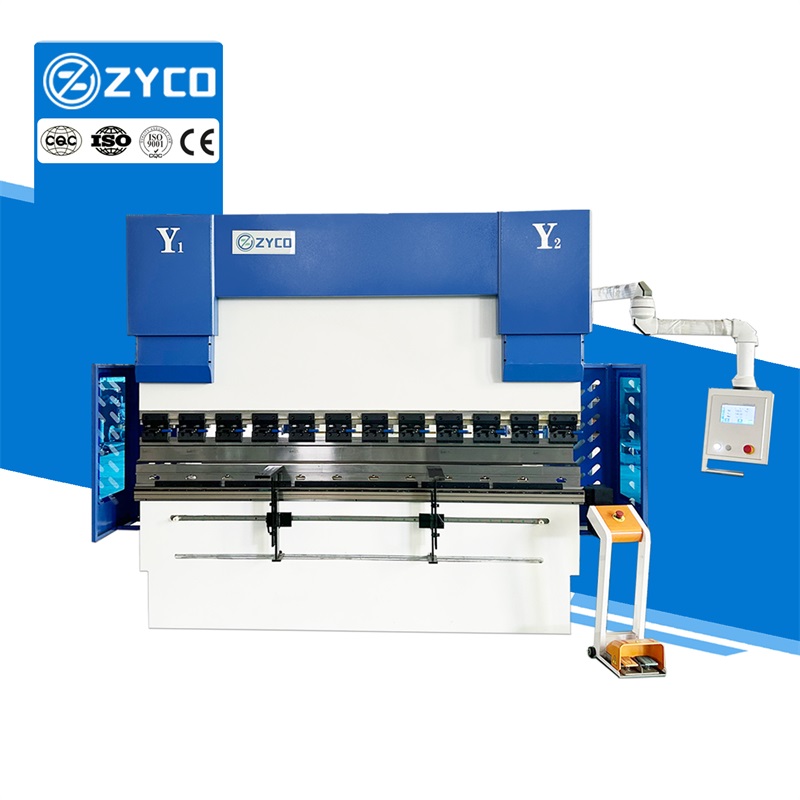

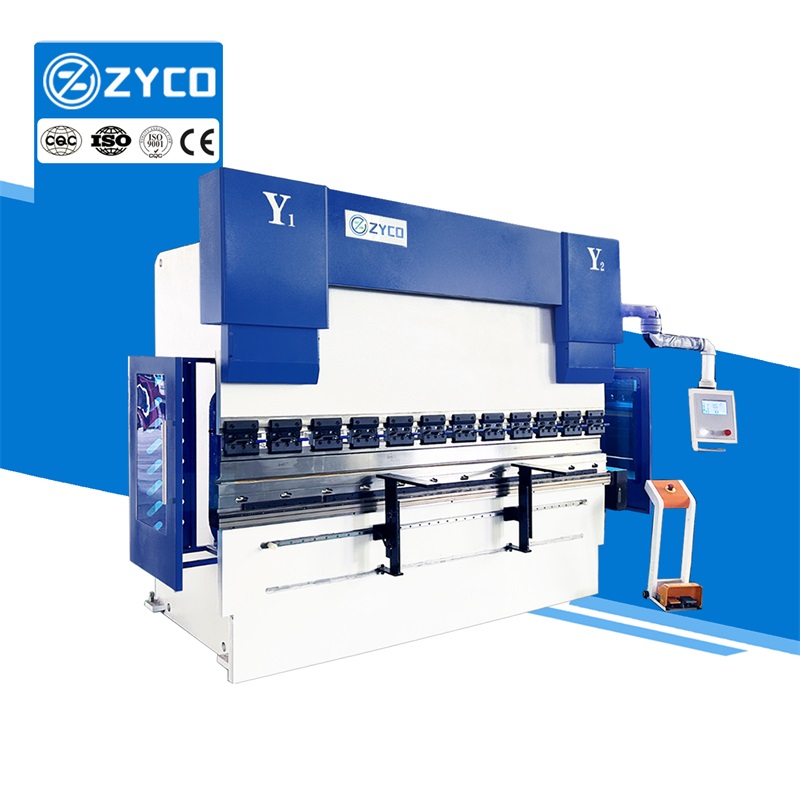

Good quality 100 160tons CT8 cnc press brake for sheet metal processing hydraulic plate

Good quality 100 160tons CT8 cnc press brake for sheet metal processing hydraulic plate

The CT8 electro-hydraulic bending machine is an advanced CNC equipment with high precision and efficient production. It not only has a wide range of applications but is also very easy to operate. It is one of the most popular bending machines among sheet metal bending equipment.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.Accurate control: The CT8 electro-hydraulic bending machine is equipped with a state-of-the-art CNC system that guarantees uniformity in the angle and positioning of each bend.

2.Superior Bending Capability: This machine offers substantial bending force and an extensive bending length range, capable of handling both thin and thick materials with consistent and efficient results.

3.Intuitive control panel: The CT8 electro-hydraulic press brake features a simple and intuitive control interface, making it easy for operators to use.

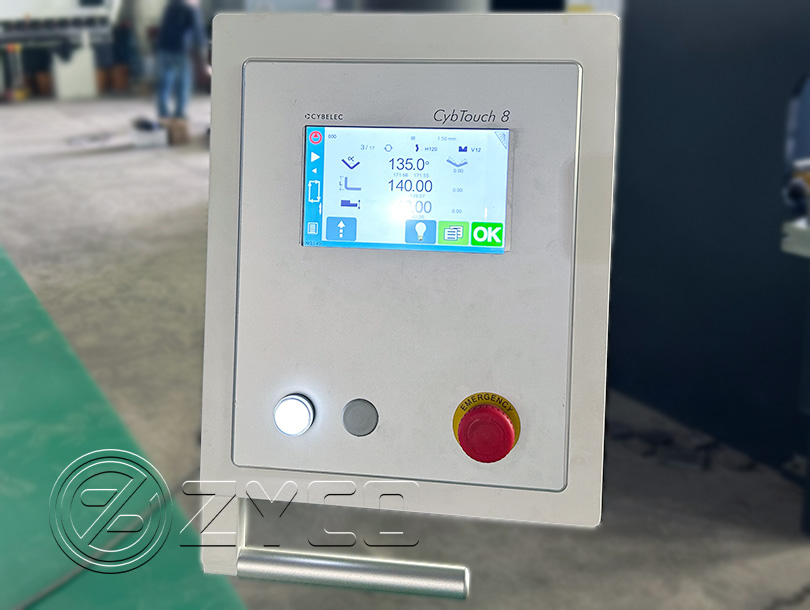

Control system

Adopt advanced Y-axis control algorithm, which can control closed-loop valves and open-loop valves.

Equipped with 10.1-inch high-resolution true-color TFT display.

Built-in mold/material/product library, supporting servo or frequency conversion control.

View More +

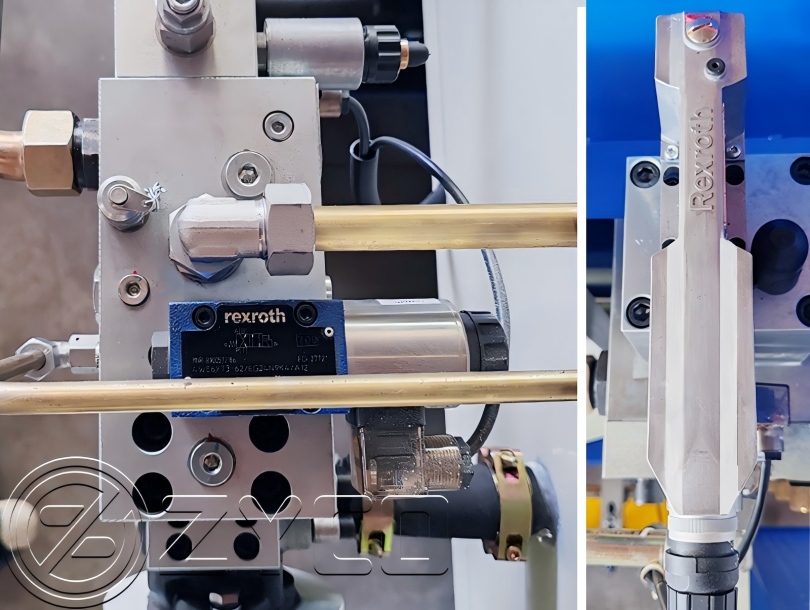

Hydraulic system

Use German Rexroth valve group, high precision and long life.

The pressure of the hydraulic system can be adjusted according to actual needs to meet different bending force requirements.

Adopt electro-hydraulic servo synchronous control design, the hydraulic cylinder spacing is the smallest, and it has strong anti-eccentric load capacity.

View More +

Main motor

ZYCO uses well-known Siemens motors, which have high quality and long service life.

Low noise and more energy-saving.

The brand selection is guaranteed and provides perfect after-sales service.

View More +

Back gauge

We use imported ball screws and linear guides to replace traditional threads, which improves the accuracy and consistency of the manufacturing process.

The entire back gauge system is treated with high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and avoid loss of accuracy caused by frame deformation.

View More +

Grating scale

We use GIVI brand grating ruler imported from Italy.

Higher precision and more responsive.

High quality and long service life.

View More +

High-precision plate Press Brake equipment

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1 .Oil tank 2.Main motor 3.Grating Ruler 4.Electerical box 5.C type plate 6.Stopping finger 7.Back gauge

8.Servo motor 9.Wall panel 10.Valve 11.Hydraulic oil cylinder 12.Slider 13.CNC system 14.Quick Clamoing

15.Upper mold16.Lower mold 17.CNC automatic Crowning 18.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000
