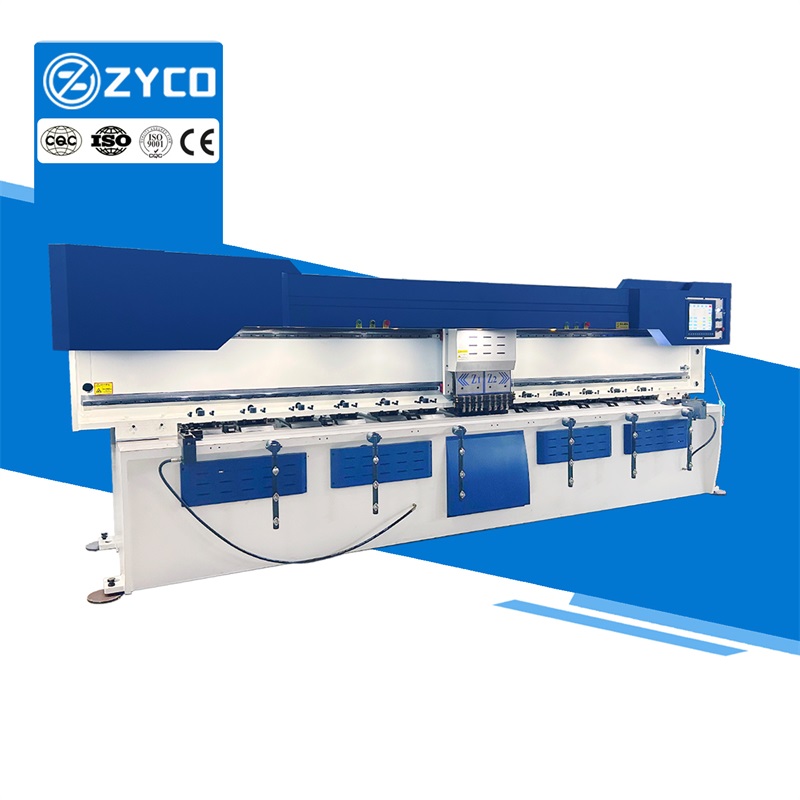

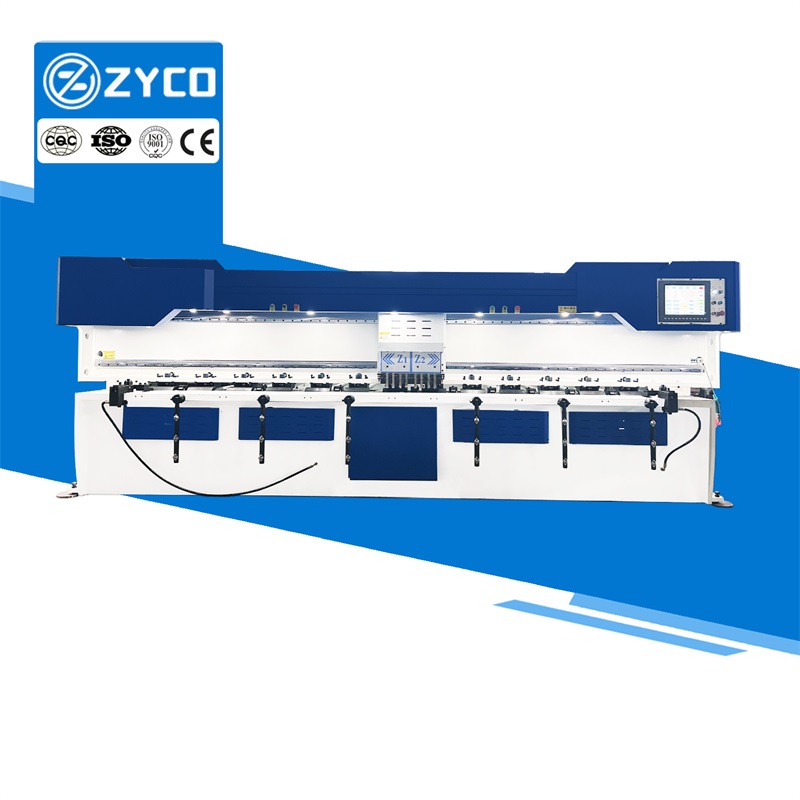

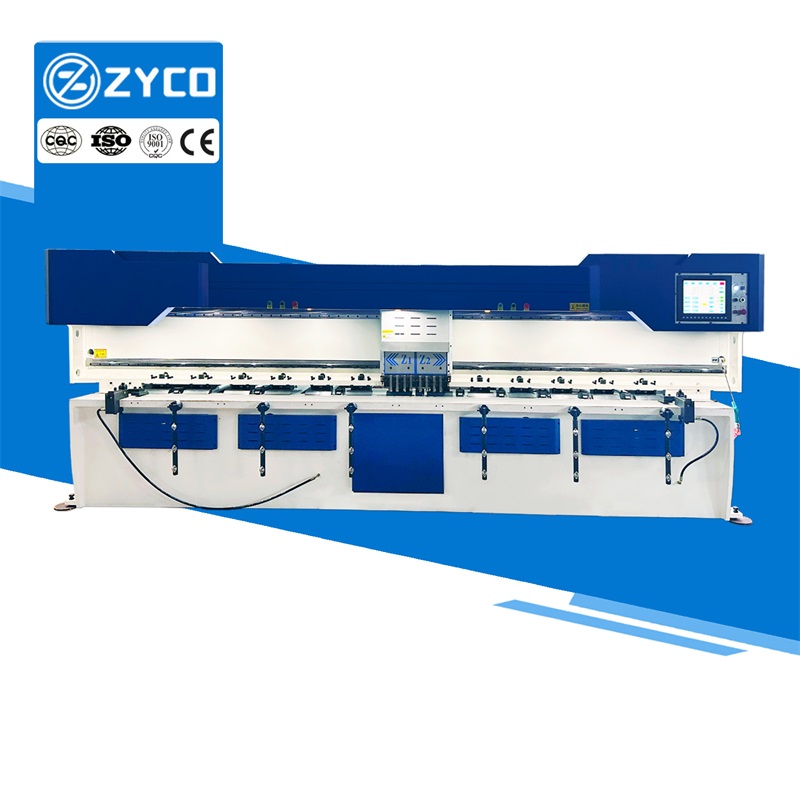

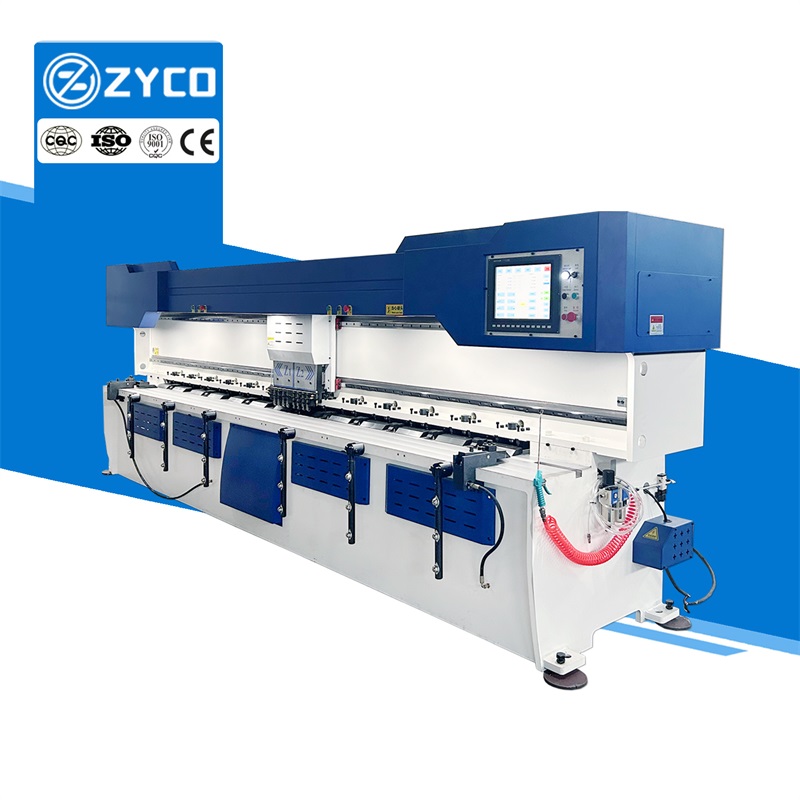

ZYCO Vertical Automatic Auto Cnc V-shaped slotting machine for Stainless Steel Metal

ZYCO Vertical Automatic Auto Cnc V-shaped slotting machine for Stainless Steel Metal

The vertical slotting machine is welded from steel plates with high strength, smooth and quiet operation. It can work stably by simply placing and leveling it on a flat and solid cement floor. The structural design of the vertical slotting machine makes it more compact and occupies a small area, making it suitable for use in workshops with limited space.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
12000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Precision machining: The vertical slotting machine has high cutting accuracy, and the accuracy from the tip of the tool to the table surface can reach within 0.02mm.

2. Energy saving: Since the tool holder of the vertical slotting machine moves back and forth during planing, and the weight is light, the energy loss is low, which has the advantages of energy saving and environmental protection.

3. Suitable for processing large workpieces: Horizontal slotting machines usually have a large workbench, which is convenient for placing and fixing large workpieces.

CNC system

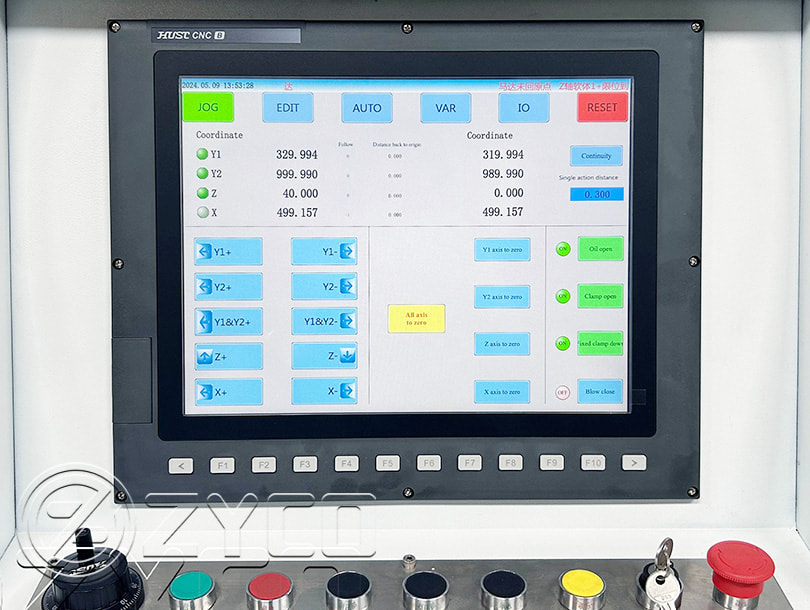

This slotting machine is equipped with Taiwan HUST CNC system, equipped with intelligent touch screen, simplified operation interface, and more convenient operation.

The system integrates a variety of advanced functions to improve processing efficiency and ensure high-quality slotting effects.

It has a user-friendly operation interface and supports one-key return function, which is convenient and fast to use.

View More +

grooving machine high precision slotting

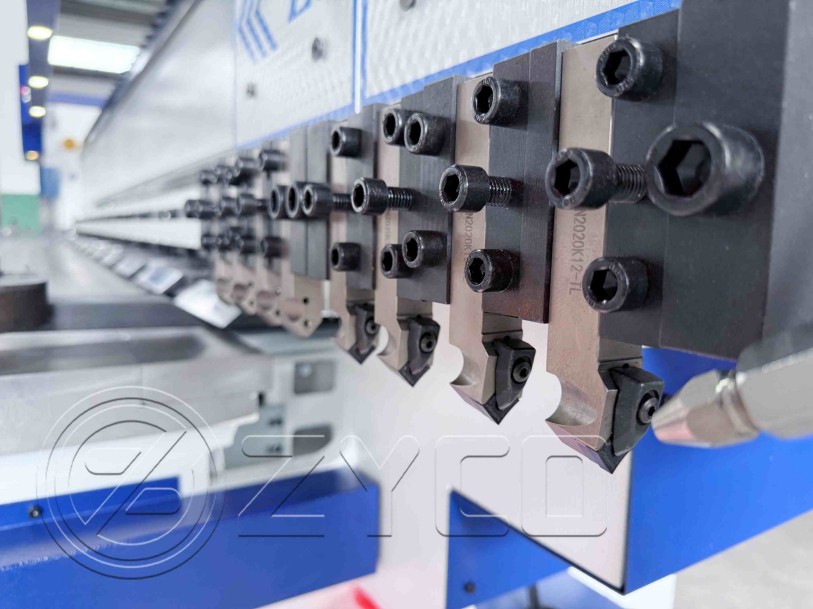

Alloy blade

Four-knife processing technology is used to ensure that each blade cuts the slot hole evenly during processing.

The blade is made of alloy steel, which has excellent grooving effect and long service life.

View More +

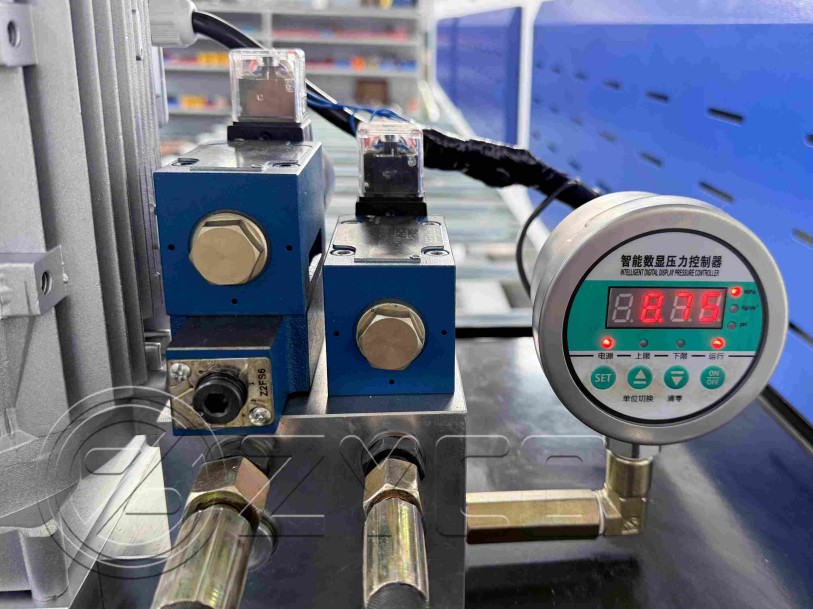

Hydraulic system

The machine adopts imported Japanese hydraulic system with excellent performance.

The excellent performance of the power transmission system ensures its high strength and durability for a long time.

The system has good resistance to high pressure and high temperature.

View More +

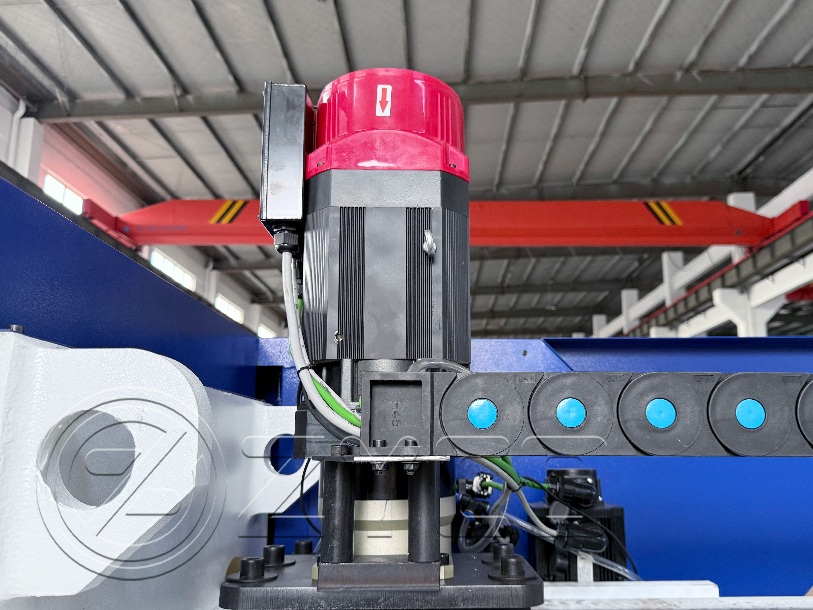

Servo motor

High precision, fast response and sensitive speed adjustment capability.

Low failure rate, beautiful appearance and compact structure.

Support fault code monitoring, which is convenient for timely repair when problems occur, ensuring the stability and efficiency of the system.

View More +

Multifunctional Industrial Slotting Machine

Structure and frame

The base and crossbeam of the machine tool adopt a frame structure design, the workbench uses 60mm thick low-alloy high-strength structural steel, and the frame uses Q235 steel plate to ensure that the machine tool has excellent overall rigidity, solid structure and strong durability.

The frame adopts tempering treatment process to eliminate deformation caused by stress and ensure stability and precision.

View More +

High-end precision machining slotting machine

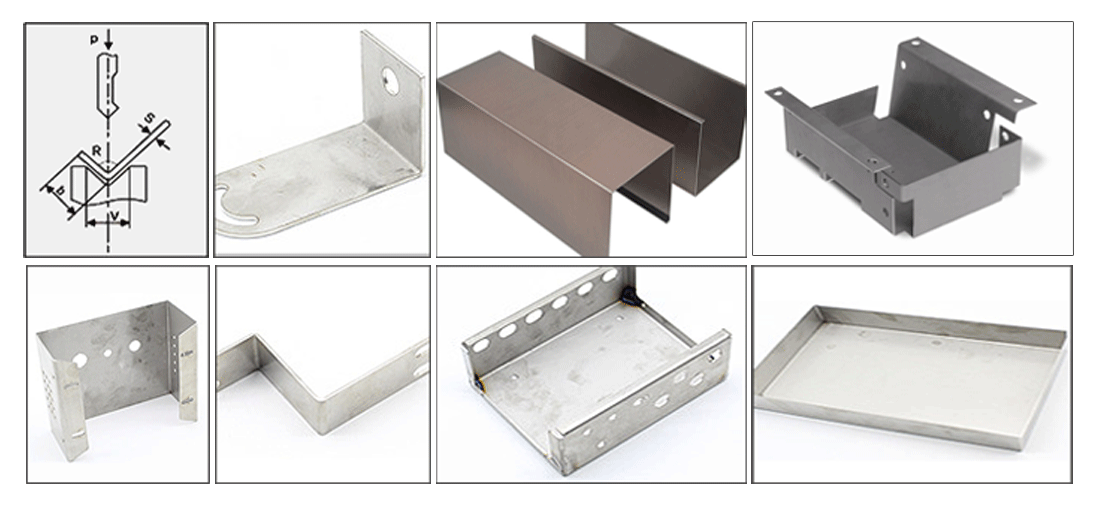

Processing Workpiece Drawing

For more detailed specifications, please don't hesitate to contact us.

Sample Diaplay

Processing board length	Processing plate width	Dimensions	Maximum thickness of processed sheet	X-axis maximum speed	Y-axis maximum speed	Z-axis maximum speed	X-axis positioning accuracy	Y-axis positioning accuracy
（mm）	（mm）	（mm）	（mm）	（m/min）	（m/min）	（m/min）	（mm）	（mm）
3200	1500	510021502000	8	90m/min	90m/min	20m/min	±0.02	±0.02
4100	1500	590021502000	8	90m/min	90m/min	20m/min	±0.02	±0.02
5100	1500	690021502000	8	90m/min	90m/min	20m/min	±0.02	±0.02
6000	1500	790026502500	8	90m/min	90m/min	20m/min	±0.02	±0.02
6000	2000	790031502500	8	90m/min	90m/min	20m/min	±0.02	±0.02
Accept special model customization

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
