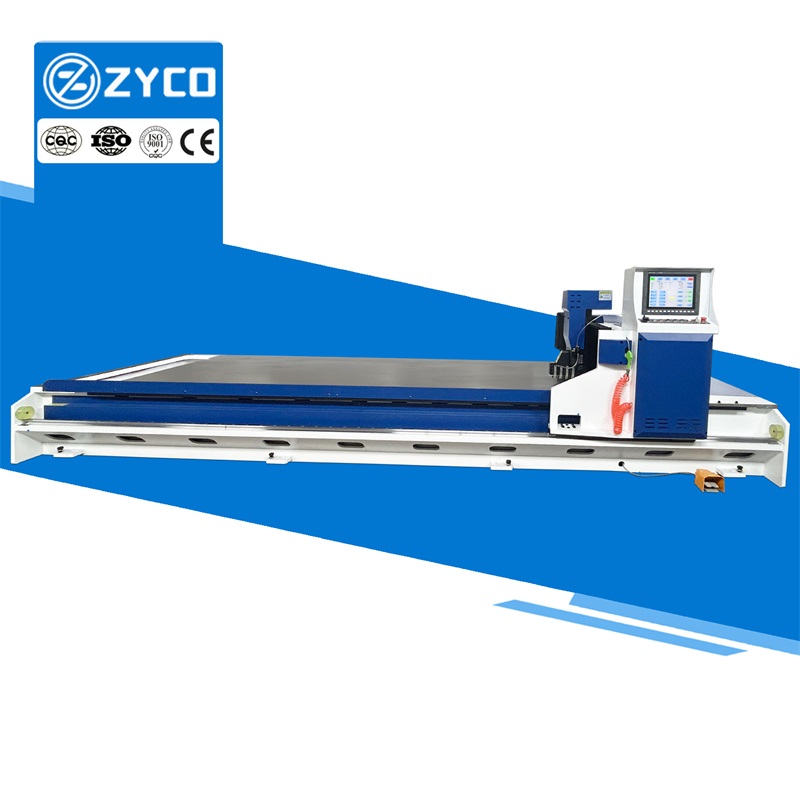

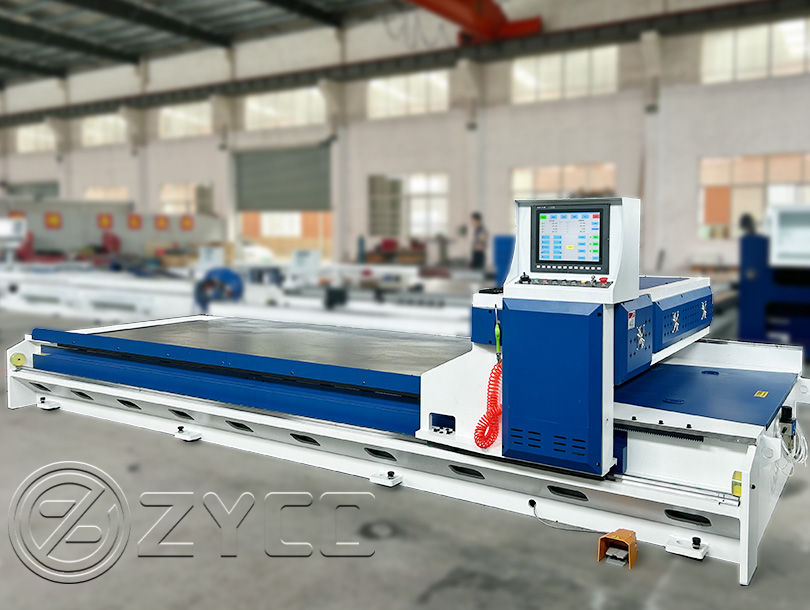

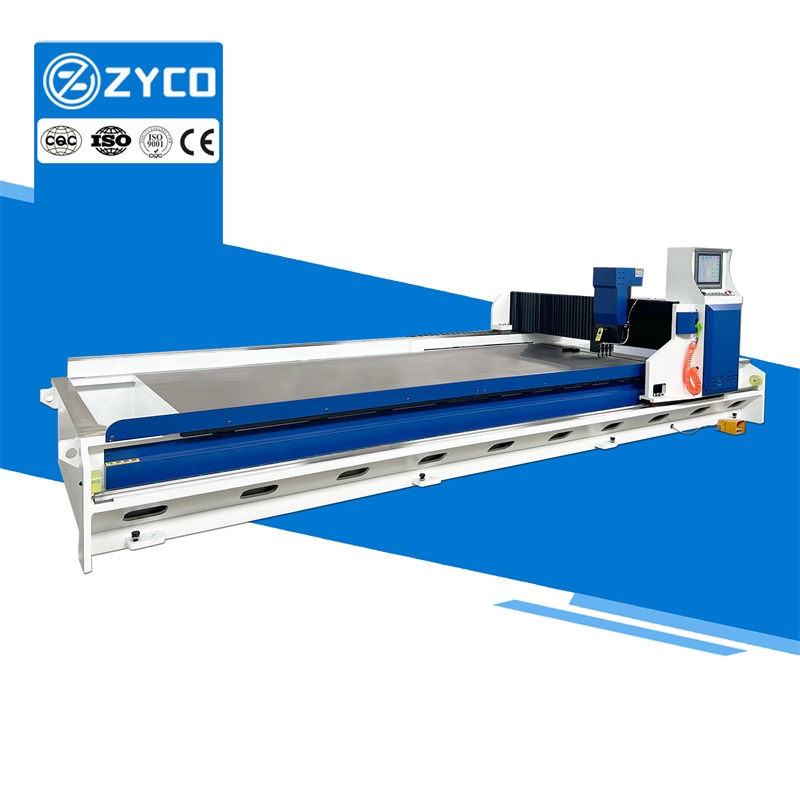

ZYCO High speed good accuracy 4000X1500 v shape horizontal slotting machine

ZYCO High speed good accuracy 4000X1500 v shape horizontal slotting machine

The frame structure is welded and connected with high-strength bolts, and tempered to ensure optimal rigidity and minimum deformation. In addition, the workbench is equipped with material support devices at the front and rear to prevent possible scratches on the plate during the grooving process.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
12000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.High processing precision: The gantry slotting machine has high cutting precision, and the distance from the tip of the tool to the table can be controlled within 0.02mm.

2. Energy saving and environmental protection: The tool holder of the vertical slotting machine moves back and forth during planing, which is light in weight and has low energy loss, and has the advantages of energy saving and environmental protection.

3. Suitable for processing large workpieces: Horizontal slotting machines usually have a large workbench, which is convenient for placing and fixing large workpieces.

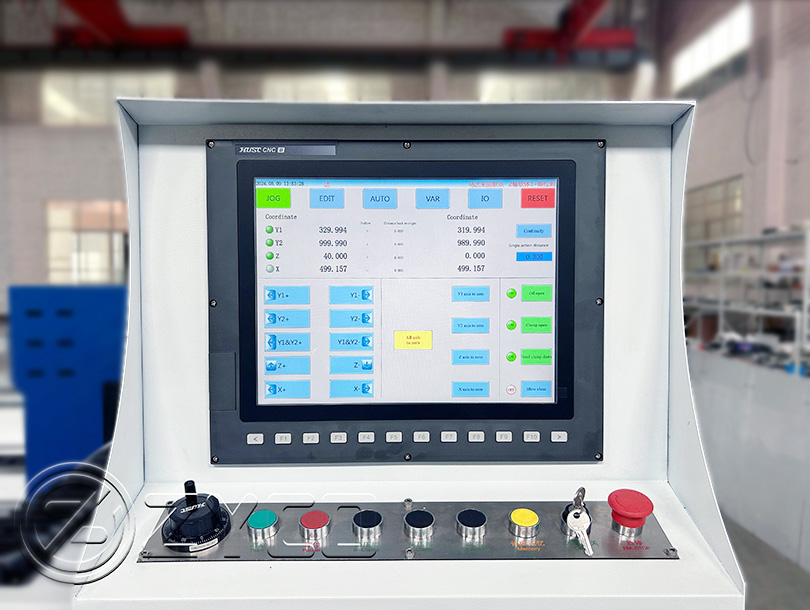

CNC system

The slotting machine adopts Taiwan HUST CNC system, with intelligent touch screen to simplify the operation interface.

The system also integrates various advanced functions to improve processing efficiency and achieve high-quality slotting effect.

Good human-computer interaction, with one-key return function.

View More +

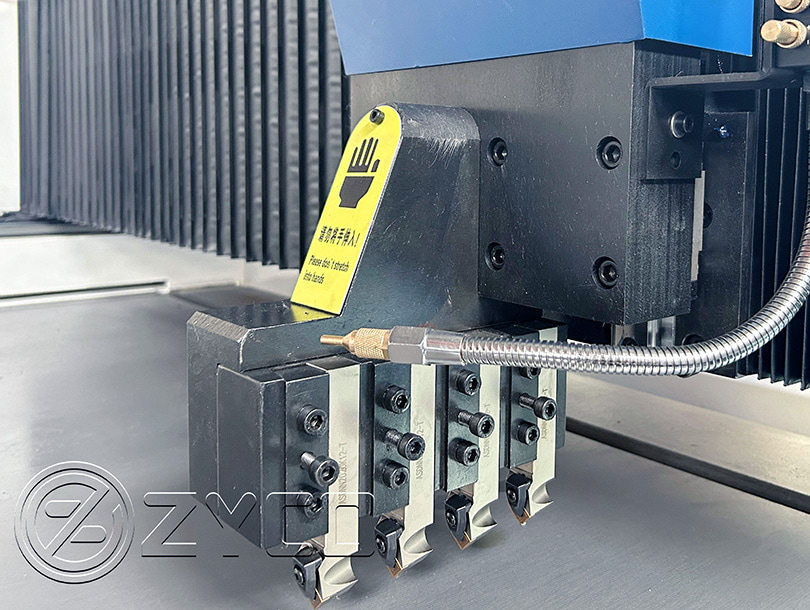

Alloy blade

The slotting machine adopts four-knife processing technology to ensure that each blade is slotted evenly during the processing process.

The blade is made of alloy steel, with good grooving effect and longer service life.

View More +

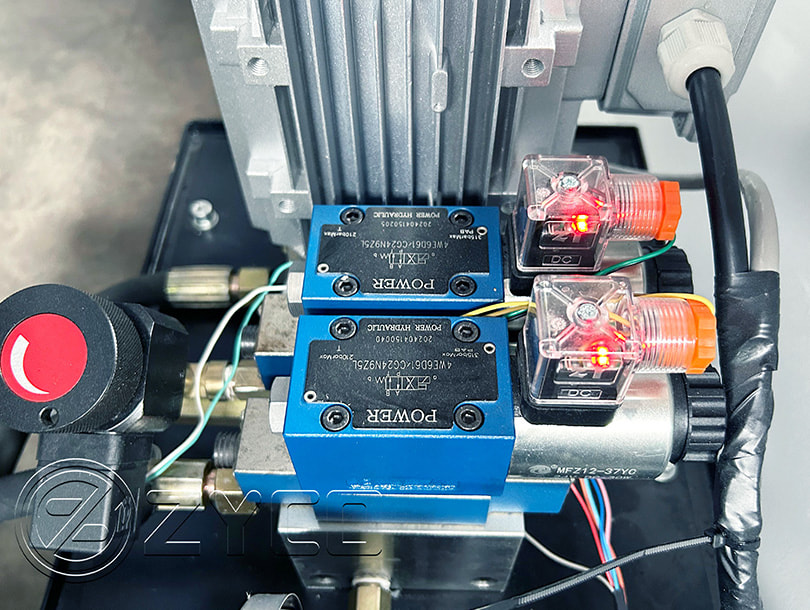

Hydraulic system

The hydraulic system imported from Japan is adopted.

The excellent performance of the power transmission system ensures its continuous strength and durability.

High pressure and high temperature resistance.

View More +

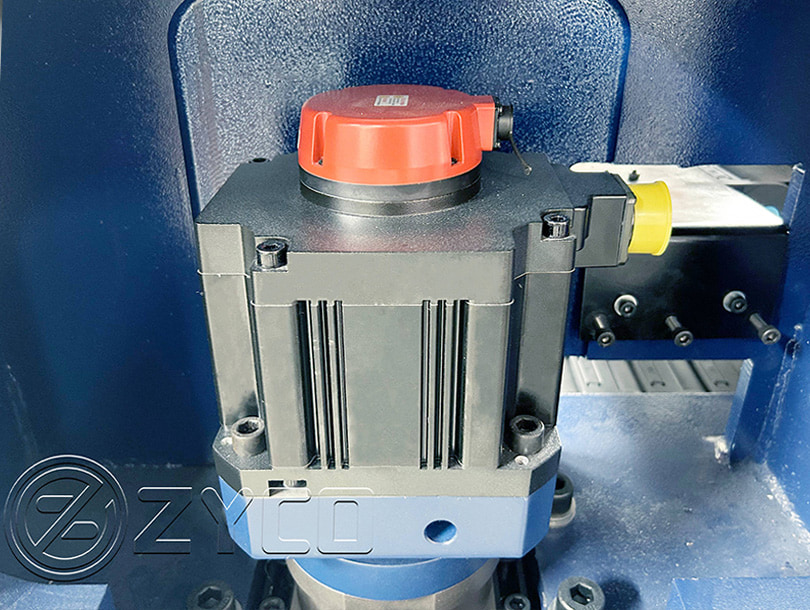

Servo motor

High precision, fast speed, quick response.

Low failure rate, beautiful.

Can monitor fault codes, correct errors in time.

View More +

Structure and frame

The machine tool base and crossbeam adopt frame structure design, the workbench adopts 60mm low-alloy high-strength structural steel, and the frame adopts Q235 steel plate, which provides good overall rigidity for the machine tool and a strong and durable structure.

The tempering process is adopted to eliminate the stress deformation of the frame.

View More +

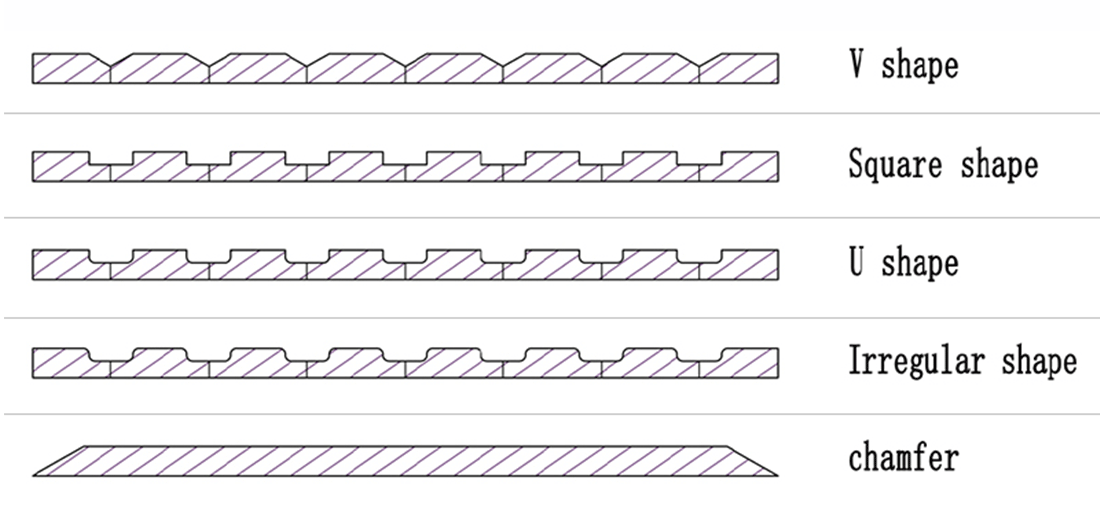

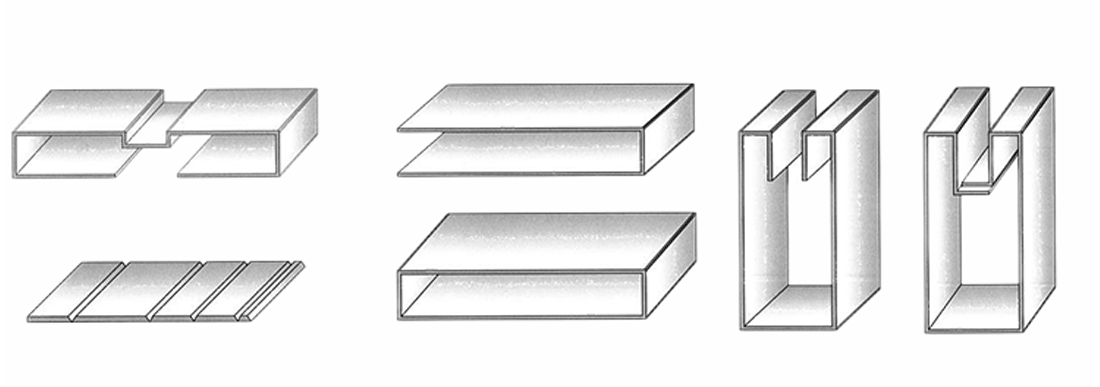

Processing Workpiece Drawing

For more detailed specifications, please don't hesitate to contact us.

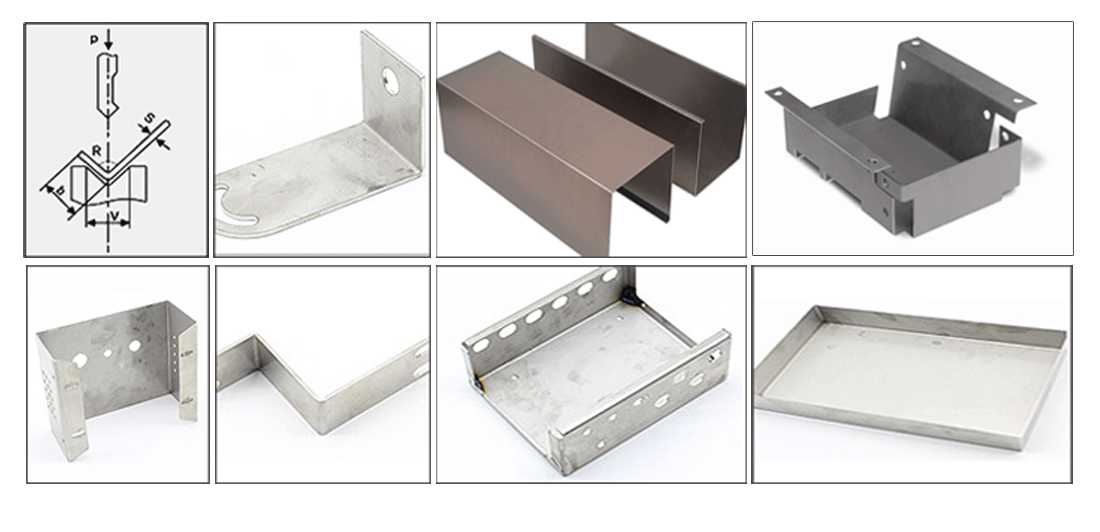

Sample Diaplay

Processing board length	Processing plate width	Dimensions	Maximum thickness of processed sheet	X-axis maximum speed	Y-axis maximum speed	Z-axis maximum speed	X-axis positioning accuracy	Y-axis positioning accuracy
（mm）	（mm）	（mm）	（mm）	（m/min）	（m/min）	（m/min）	（mm）	（mm）
3200	1250	520022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
3200	1500	520025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1250	600022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1500	600025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1250	700022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1500	700025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
6000	1500	800025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
Accept special model customization

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.

Hot Tags : Horizontal grooving machine Horizontal slotting machine cnc grooving machine metal sheet grooving machine v-shaped slotting machine v grooving machine stainless steel grooving machine Customized slotting machine China slotting machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

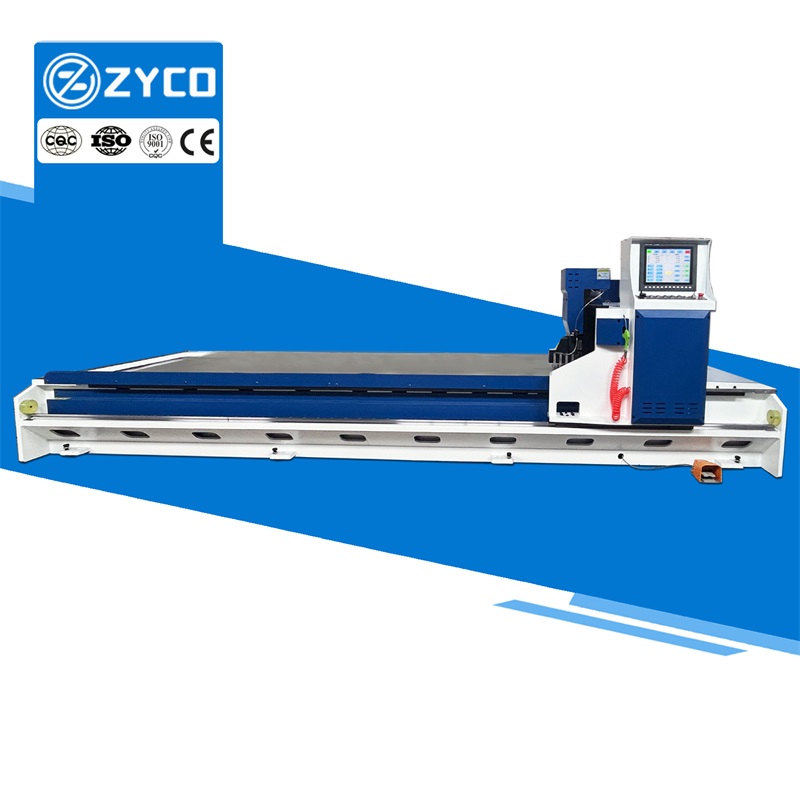

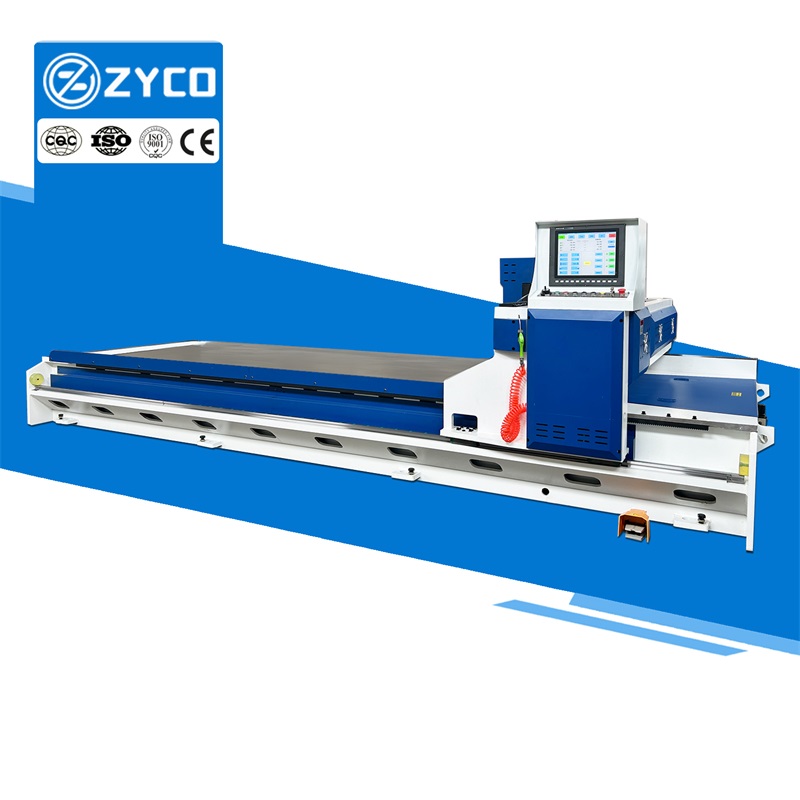

ZYCO High speed good accuracy 4000X1500 v shape horizontal slotting machine

The frame structure is welded and connected with high-strength bolts, and tempered to ensure optimal rigidity and minimum deformation. In addition, the workbench is equipped with material support devices at the front and rear to prevent possible scratches on the plate during the grooving process.

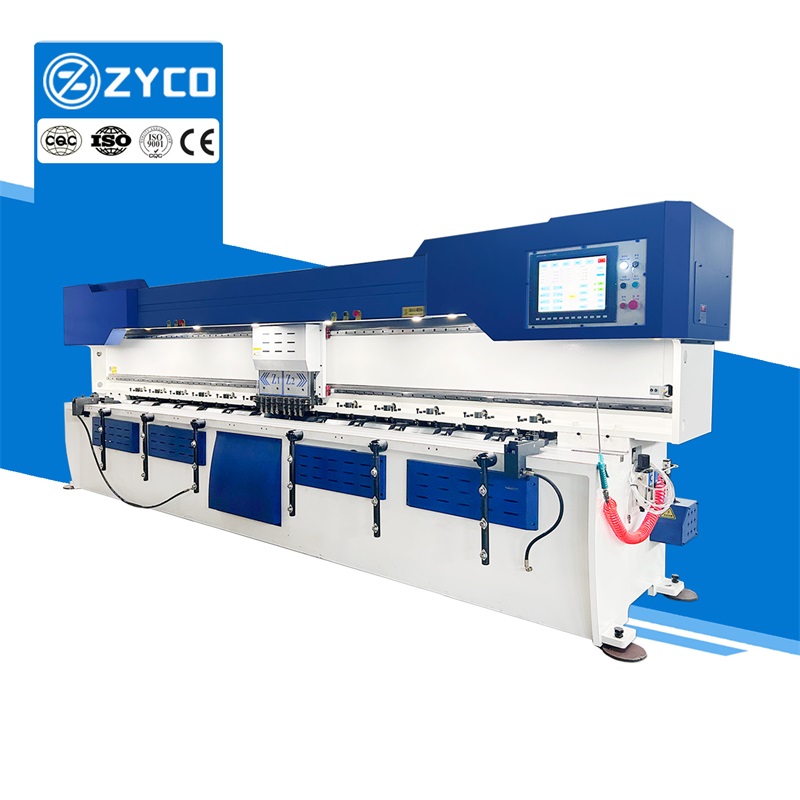

ZYCO Vertical Automatic Auto Cnc V-shaped slotting machine for Stainless Steel Metal
