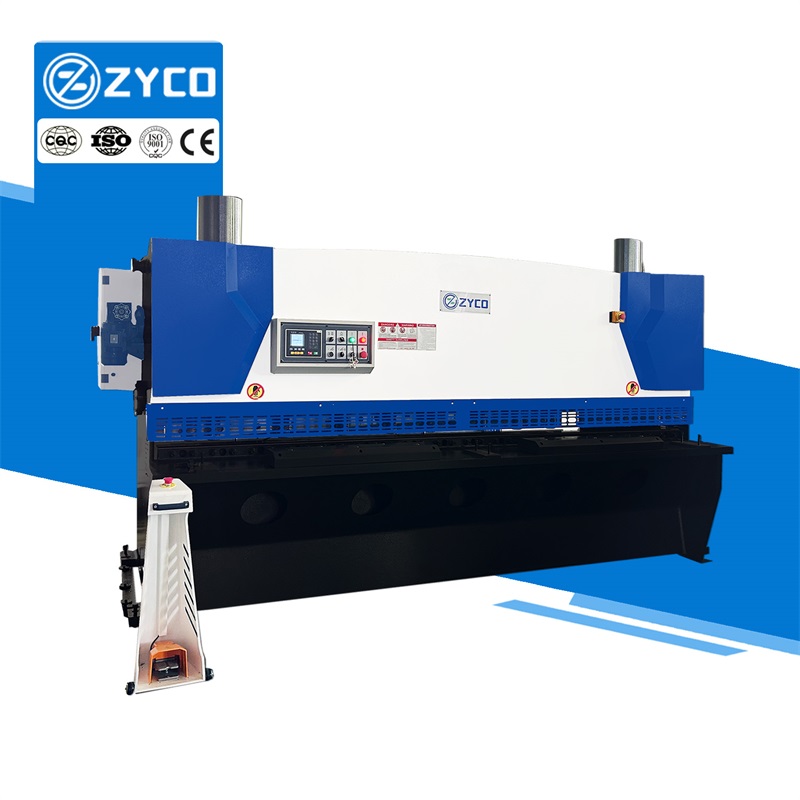

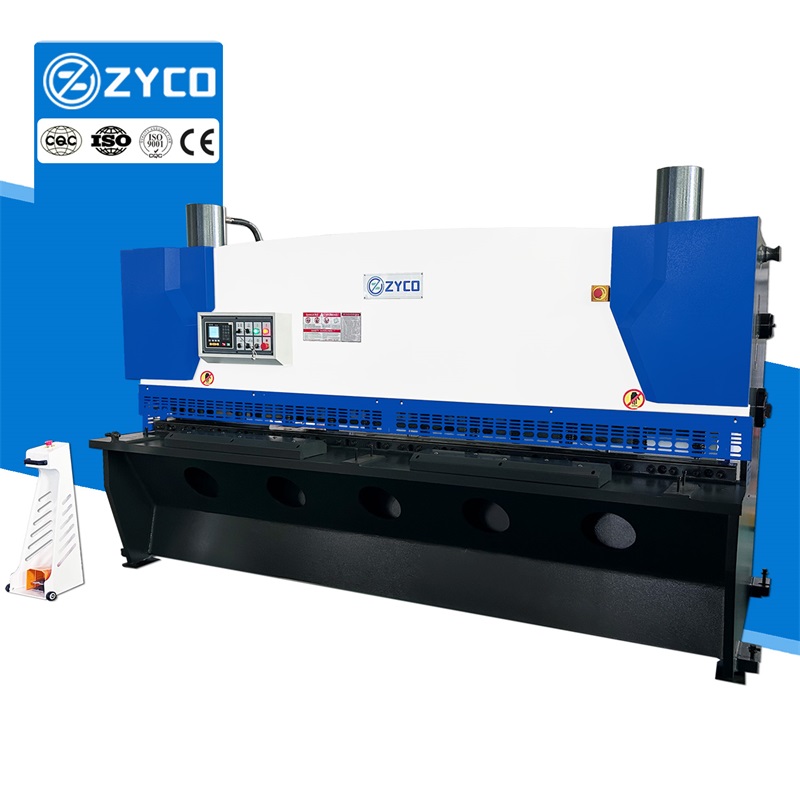

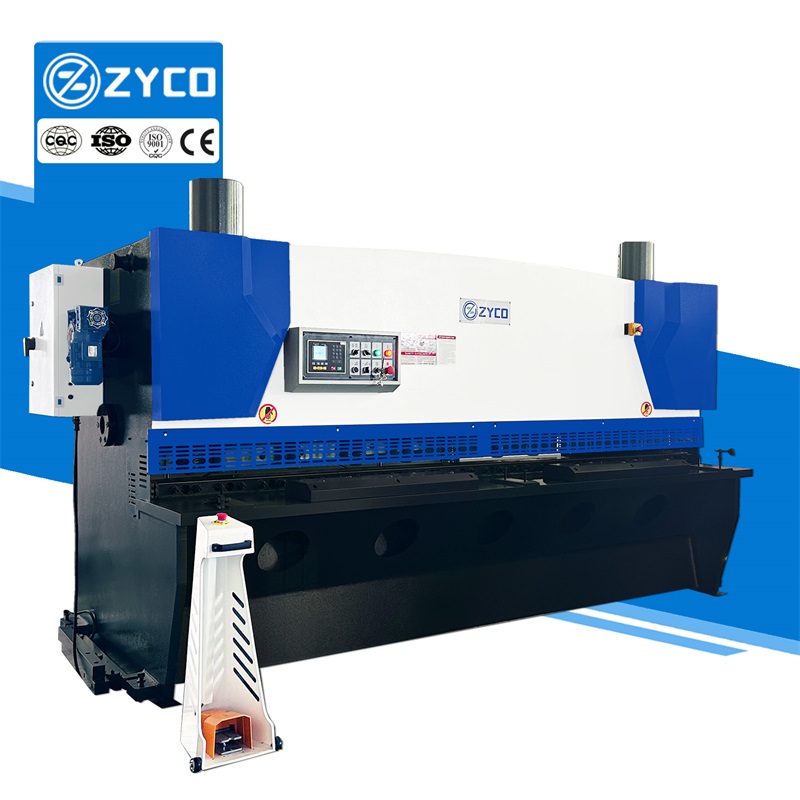

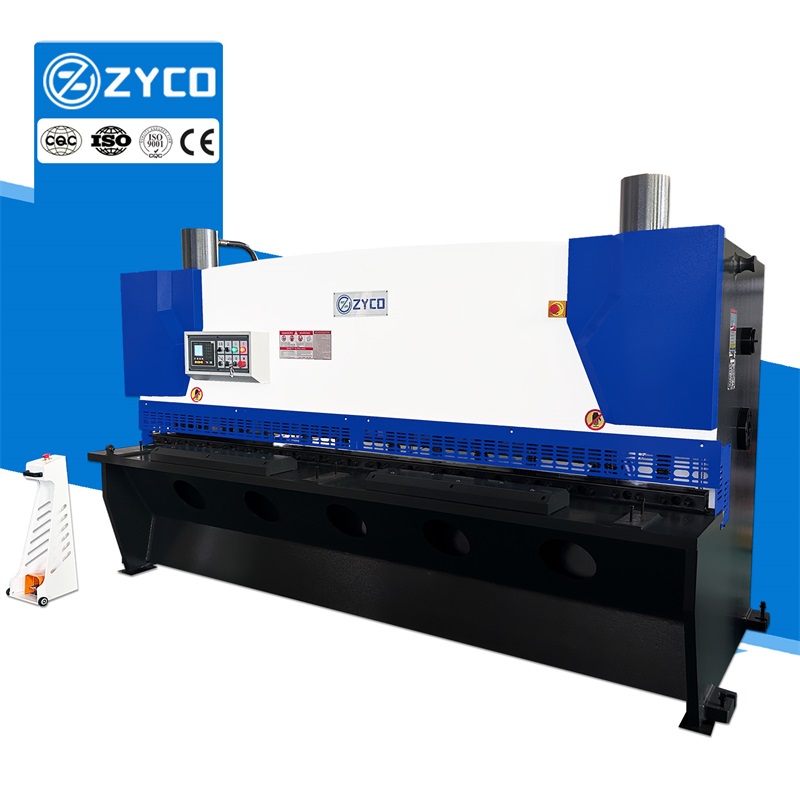

ZYCO QC11K 6*2500 12*3000 20*3000 guillotine for metal sheet steel

ZYCO QC11K 62500 123000 20*3000 guillotine for metal sheet steel

The QC11K hydraulic guillotine shear is a popular choice for global buyers for plate shearing due to its adjustable blade gap and angle. It has several advantages over other types of shears when shearing plates thicker than 13 mm, including favorable prices and high shearing accuracy.

Order(MOQ) :
1
Product Origin :
Nanjin
Weight :
12000kg
Warranty time :
2 years
Automatic level :
Fully Automatic
Key selling points :
Low Maintenance Cost

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.High-strength frame structure: The shearing machine adopts a fully welded box-shaped bed frame design, which is integrated with the workbench.

The frame can provide high rigidity to balance the torque load generated by the shearing force.

2.The machine has vertical linear movement relative to the lower blade to ensure minimal deformation of the shear plate and maintain accurate straightness.

3.The blade positioning of the gate shearing machine is very accurate. When performing multiple continuous shearing operations, each blade has the same degree of wear, ensuring the uniformity and flatness of the cut.

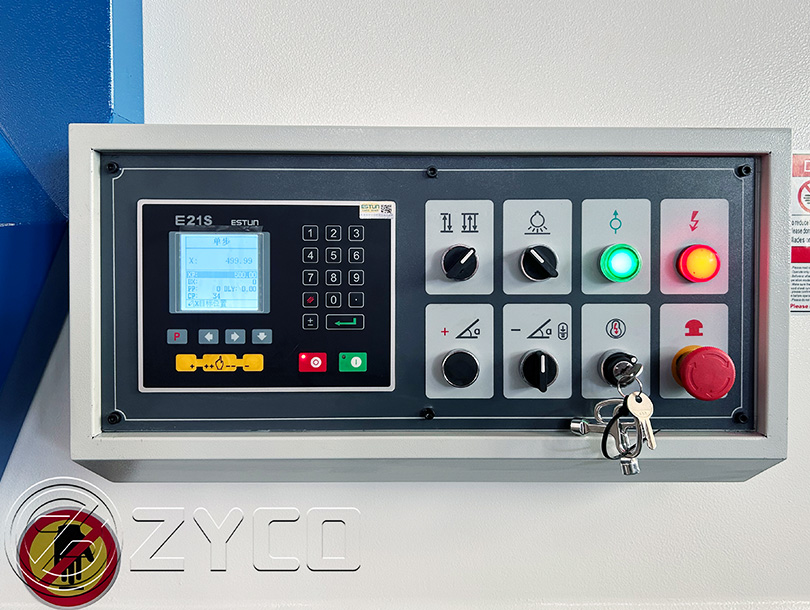

Control system

The machine is equipped with ESTUN brand E21S CNC system, which is easy to operate.

The system allows the control and adjustment of the stopper and blade angle.

The system has a counting function.

View More +

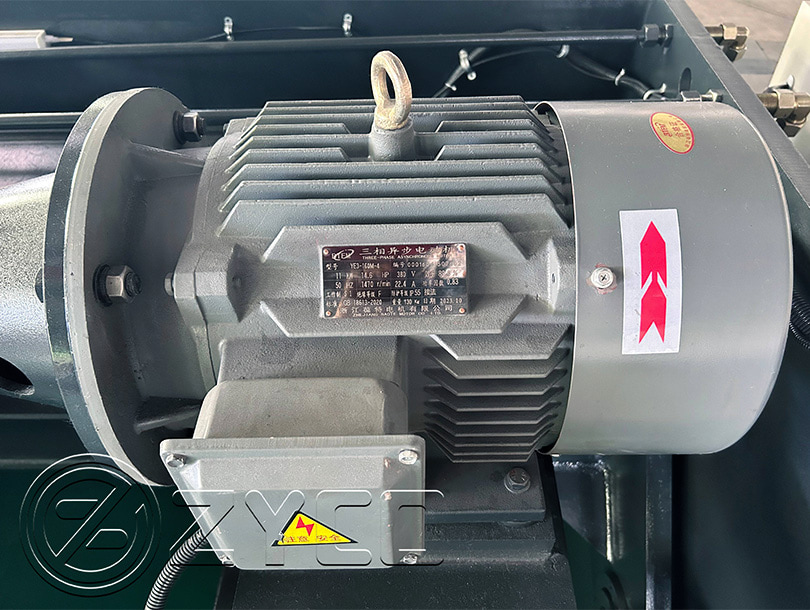

Main motor

ZYCO uses the famous Siemens motor, which has the advantages of high quality and long life.

Low noise and more energy-saving.

Brand selection and after-sales guarantee.

View More +

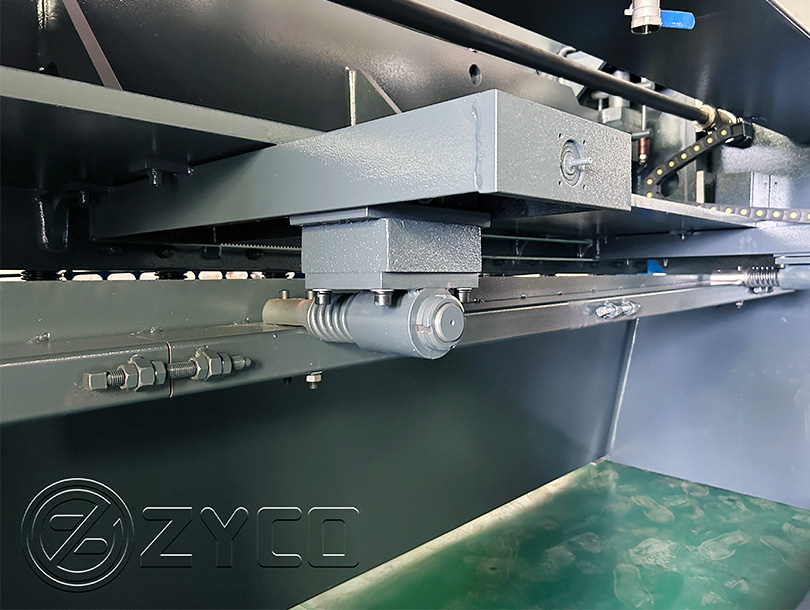

Back gauge

We use imported ball screws and linear guides instead of traditional screws. This choice improves the accuracy and consistency of our manufacturing process.

Our entire back gauge system is subjected to high temperature tempering treatment to eliminate internal stress, improve the plasticity and toughness of the metal, and prevent the loss of accuracy caused by frame deformation.

View More +

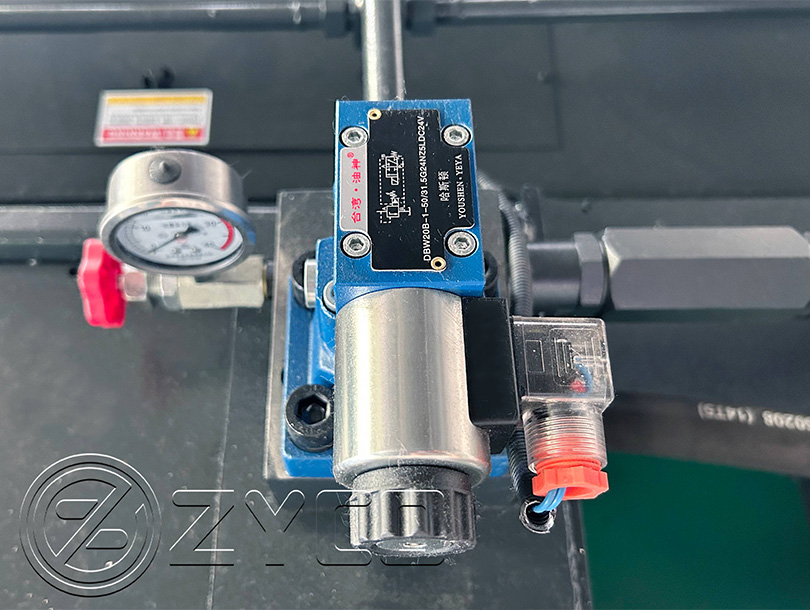

Hydraulic system

The excellent performance of the power transmission system ensures its continued strength and durability.

High pressure resistance, high temperature resistance, and very good sealing performance.

View More +

Oil pump

The oil pump is made of high-strength cast iron and adopts a unique internal noise reduction design, which makes it less sensitive to oil pollution and extends its service life.

Advanced gear pump manufacturing process, with beautiful design and high-end performance.

View More +

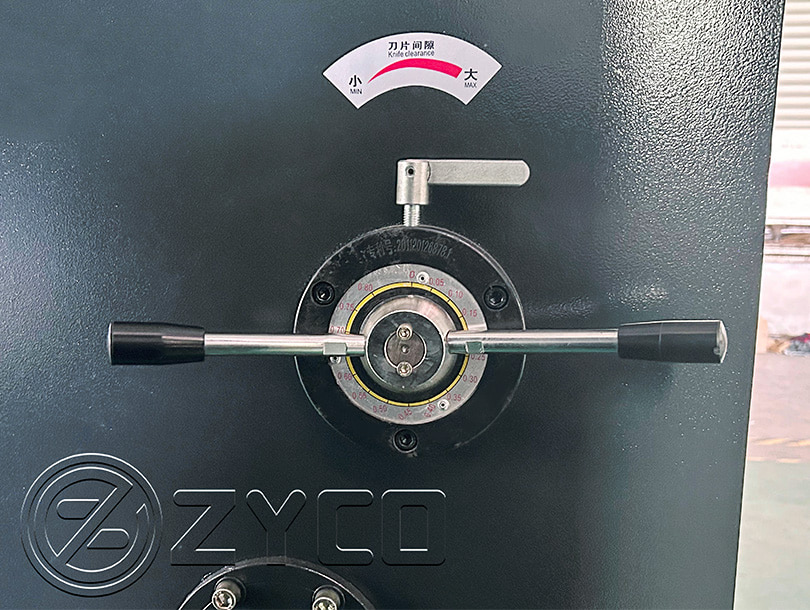

Angle adjustment

Electric angle adjustment function, easy to use.

Adjust the blade gap according to different plate thicknesses to make shearing more precise and the product more beautiful.

View More +

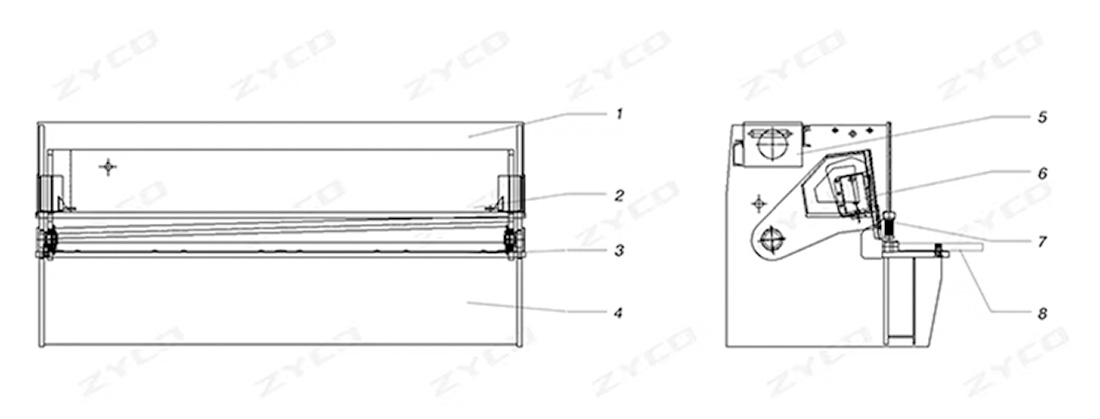

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

1. oil tank 2. Upper knife rest 3. Stop beam 4. Lower tool rest 5. oil tank 6. Oil cylinder 7.Presser foot 8. Front support material

Mode	Cutting Thickness	Cutting Length	Cutting Angel	Backgauge Stroke	Approx Weight	Overall Length	Overall Width	Overall Height	Main Power
TYPE	（mm）	（mm）	（°）	（mm）	（T）	（mm）	（mm）	（mm）	（Kw)
6*2500	6	2500	0.5-1.5	750	5.5	3800	1700	1950	7.5
6*3200	6	3200	0.5-1.5	750	6.5	4100	1700	2000	7.5
6*4000	6	4000	0.5-1.5	750	8.5	5200	1840	2150	7.5
6*5000	6	5000	0.5-1.5	750	11	6000	1840	2150	11
6*6000	6	6000	0.5-2	750	16	7000	2100	2300	11
8*2500	8	2500	0.5-2	750	6	3800	1700	1950	11
8*3200	8	3200	0.5-2	750	7	4100	1700	1950	11
8*4000	8	4000	0.5-2	750	9.5	5200	1700	1950	11
8*5000	8	5000	0.5-2	750	11.5	6000	2400	2000	11
8*6000	8	6000	0.5-2	750	17	7000	2100	2350	11
8*8000	8	8000	0.5-2	750	28	8800	2130	2350	15
10*2500	10	2500	0.5-2	750	6.8	3800	1800	1950	11
10*3200	10	3200	0.5-2	750	8.5	4300	1830	2000	11
10*4000	10	4000	0.5-2	750	12.5	5200	2100	2000	15
10*5000	10	5000	0.5-2	750	18	6000	2100	2000	15
10*6000	10	6000	0.5-2	750	24	7000	2100	2300	15
10*8000	10	8000	0.5-2	750	32	8800	2100	2300	18.5
12*2500	12	2500	0.5-2.5	750	8.5	3800	1830	2390	15
12*3200	12	3200	0.5-2.5	750	10.5	4300	1830	2390	18.5
12*4000	12	4000	0.5-2.5	1000	13.5	5200	1830	2390	18.5
12*6000	12	6000	0.5-2.5	1000	26	7000	1930	2650	18.5
12*8000	12	8000	0.5-2.5	1000	46	8950	2130	2850	22
16*2500	16	2500	0.5-2.5	1000	10.8	3800	1940	2830	22
16*3200	16	3200	0.5-2.5	1000	12.5	4300	1940	2830	22
16*4000	16	4000	0.5-2.5	1000	16.5	5200	1980	2830	22
16*5000	16	5000	0.5-2.5	1000	25	6000	2600	2830	22
16*6000	16	6000	0.5-2.5	1000	34	7000	2700	2830	22
16*8000	16	8000	0.5-2.5	1000	70	8950	2900	3430	30
20*2500	20	2500	0.5-2.5	1000	13	3800	1980	2830	22
20*3200	20	3200	0.5-2.5	1000	17	4300	1900	2830	22
20*4000	20	4000	0.5-2.5	1000	22	5200	2600	2900	22
20*6000	20	6000	0.5-2.5	1000	45	7000	3000	3000	30
30*2500	30	2500	1-3.5	1000	24	3800	1900	2830	37
30*3200	30	3200	1-3.5	1000	29	4300	1900	3000	37
40*2500	40	2500	1-3.5	1000	36	3800	2000	3000	45

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
