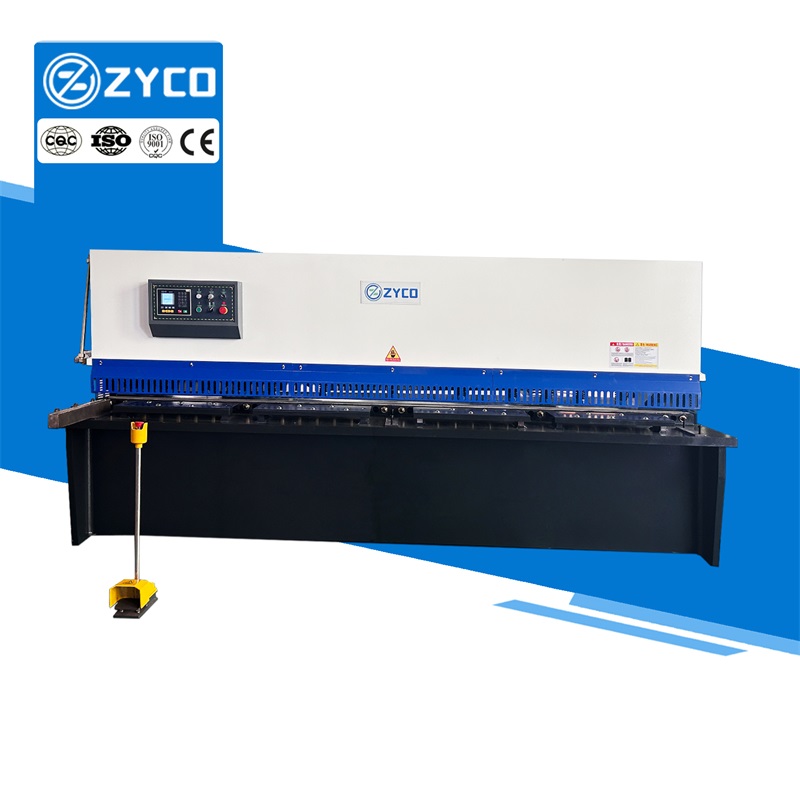

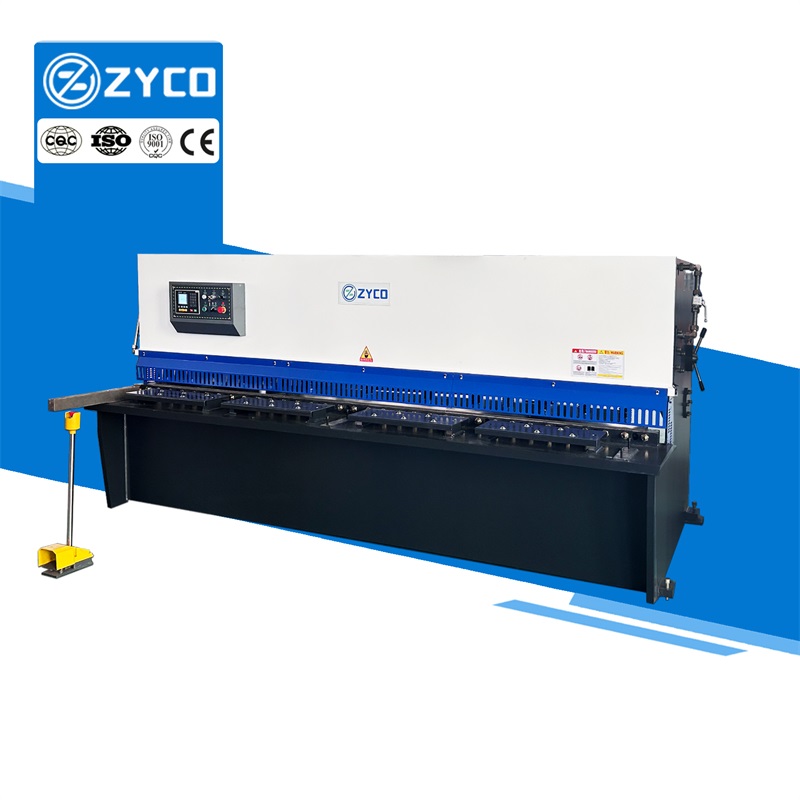

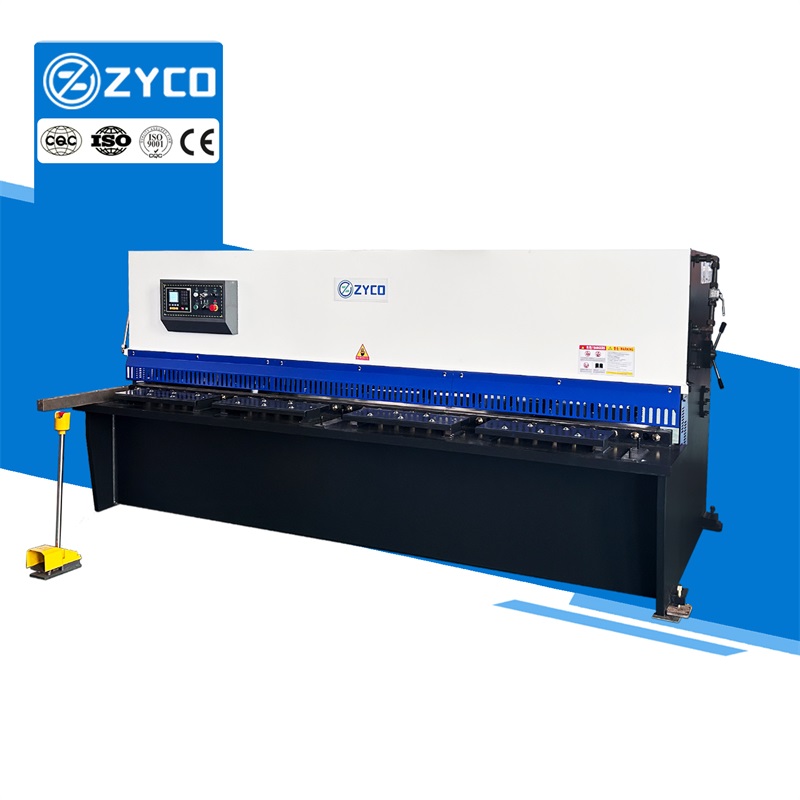

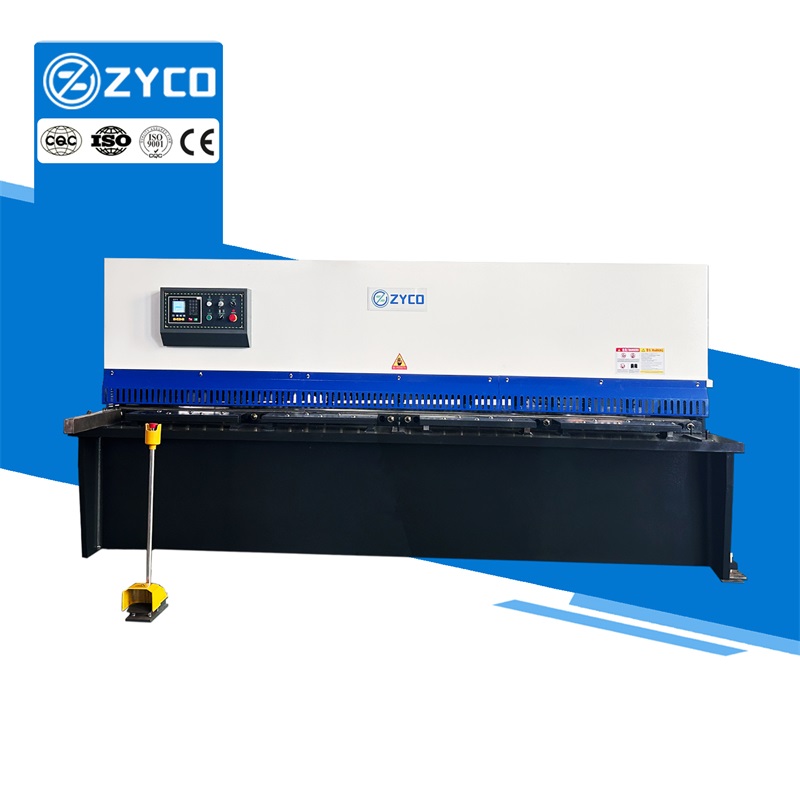

ZYCO Own Brand 12 3200 6000 hydraulic plate cutter hydraulic guillotine shearing machine

ZYCO Own Brand 12 3200 6000 hydraulic plate cutter hydraulic guillotine shearing machine

QC12K hydraulic swing shear is an affordable shearing equipment. Our swing shear is the current market leader, providing high-quality and cost-effective solutions for cutting full-length and extra-wide plates. Our QC12K series shears use the latest technology. We have strictly processed and assembled the shear angle of the knife frame to ensure the precision and accuracy of each cut.

Order(MOQ) :
1
Product Origin :
Nanjin
Weight :
8000kg
Warranty time :
2 years
Automatic level :
Fully Automatic
Key selling points :
Low Maintenance Cost

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Strong frame structure: The shearing machine adopts a fully welded box-shaped bed frame design, which is closely integrated with the workbench to form a high-strength structural system. This design can significantly improve the rigidity of the frame and effectively balance the torque load caused by the shearing force.

2. When the machine is in operation, it shows a vertical and linear motion trajectory relative to the lower blade. This feature greatly reduces the deformation of the plate during the shearing process and ensures the precise straightness of the shearing edge.

3. The gate shearing machine shows extremely high accuracy in blade positioning. Even in continuous multiple shearing operations, each blade can be evenly worn, ensuring the neatness, consistency, flatness and smoothness of the cut edge.

Control system

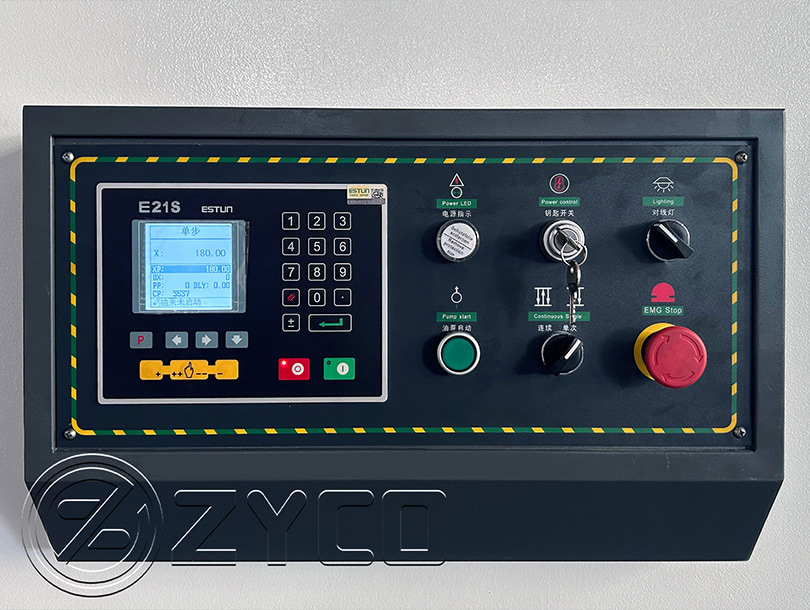

The machine is equipped with the ESTUN brand E21S CNC system, which provides users with a convenient control experience with its intuitive and easy-to-use interface.

This CNC system incorporates variable frequency control technology to further improve the accuracy of stopper positioning.

The system also integrates a counting function to facilitate users to track production progress.

View More +

Main motor

ZYCO uses the industry-renowned Siemens motor, which is famous for its excellent quality and long service life.

Siemens motors run with low noise and high energy efficiency, bringing users a quieter and energy-saving working environment.

Brand selection and after-sales guarantee.

View More +

Back gauge

We introduced imported ball screw and linear guide technology to replace traditional screws. This innovation significantly improved the accuracy and consistency of the manufacturing process.

The entire back gauge system has undergone a strict high-temperature tempering process, which effectively eliminates internal stress, enhances the plasticity and toughness of the metal, ensures the stability of the frame, and avoids precision loss.

View More +

Hydraulic system

The power transmission system performs well, ensuring its long-lasting high strength and durability.

The system can withstand high pressure and high temperature environments, and its excellent sealing performance ensures the stable operation of the hydraulic system.

View More +

Oil pump

The oil pump is made of high-strength cast iron and incorporates a unique internal noise reduction design, making it highly resistant to oil pollution, thereby extending the service life of the oil pump.

The oil pump adopts advanced gear pump manufacturing technology, which is not only beautiful in appearance, but also excellent in performance, providing users with stable and reliable hydraulic power.

View More +

Internal Structure Display

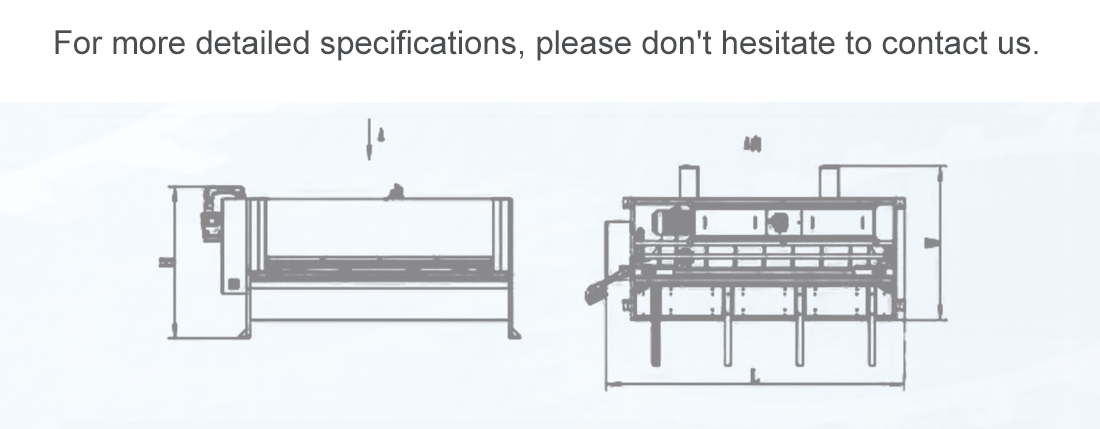

For more detailed specifications, please don't hesitate to contact us.

Mode	Thickness	Width	Cutting Angel	Material Intension	Backgauge travel	Cutting Times	Main Motor Power	Weight	Overall Dimension
TYPE	（mm）	（mm）	（°）	（KN/CM）	（mm）	（T/min）	（kw）	（kg）	LxWxH（mm)
4*2500	4	2500	1°30‘	≤450	20-600	16	5.5	3500	330016101620
4*3200	4	3200	1°30‘	≤450	20-600	14	5.5	4500	384016101620
4*4000	4	4000	1°30‘	≤450	20-600	10	5.5	6500	460017001700
4*6000	4	6000	1°30‘	≤450	20-600	8	7.5	11000	646021003200
6*2500	6	2500	1°30‘	≤450	20-600	14	7.5	5000	340016101620
6*3200	6	3200	1°30‘	≤450	20-600	12	7.5	6000	384016101620
6*4000	6	4000	1°30‘	≤450	20-600	8	7.5	8200	462017501700
6*5000	6	5000	1°30‘	≤450	20-600	6	11	10500	540018001900
6*6000	6	6000	1°30‘	≤450	20-600	5	11	16500	648021002300
8*2500	8	2500	1°30‘	≤450	20-600	10	7.5	6000	340017001700
8*3200	8	3200	1°30‘	≤450	20-600	8	7.5	7200	386017001700
8*4000	8	4000	1°30‘	≤450	20-600	8	7.5	8800	464017001700
8*5000	8	5000	1°40‘	≤450	20-600	8	11	11500	540021002000
8*6000	8	6000	1°40‘	≤450	20-600	8	11	18000	648021002350
10*2500	10	2500	2°	≤450	20-600	9	11	7300	340017001700
10*3200	10	3200	2°	≤450	20-600	9	11	8000	386017001700
10*4000	10	4000	2°	≤450	20-600	8	11	12050	465021002000
10*6000	10	6000	2°	≤450	20-1000	5	15	24000	650021002300
12*2500	12	2500	2°	≤450	20-600	9	18.5	9000	350021502000
12*3200	12	3200	2°	≤450	20-600	9	18.5	10800	388021502000
12*4000	12	4000	2°	≤450	20-1000	8	18.5	13000	468021502000
12*5000	12	5000	2°	≤450	20-1000	6	18.5	16000	590021502000
12*6000	12	6000	2°	≤450	20-1000	5	18.5	29500	690026002700
12*8000	12	8000	2°	≤450	20-1000	5	18.5	46500	900035003500
16*2500	16	2500	2°20‘	≤450	20-600	9	22	11000	350021502000
16*3200	16	3200	2°20‘	≤450	20-600	8	22	13000	388021502000
16*4000	16	4000	2°20‘	≤450	20-1000	8	22	16300	465021502200
16*5000	16	5000	2°20‘	≤450	20-1000	6	22	20000	590026002700
16*6000	16	6000	2°20‘	≤450	20-1000	5	22	36000	690027002700
16*8000	16	8000	2°20‘	≤450	20-1000	5	22	75000	900035003500
20*2500	20	2500	2°30‘	≤450	20-1000	8	22	15800	360023002500
20*3200	20	3200	2°30‘	≤450	20-1000	8	22	18500	415023502700
20*4000	20	4000	2°30‘	≤450	20-1000	5	22	21500	485026002700
20*6000	20	6000	2°30‘	≤450	20-1000	4	30	47000	670030003000
25*2500	25	2500	3°	≤450	20-1000	8	30	19000	360027002900
25*3200	25	3200	3°	≤450	20-1000	5	30	23000	420027002900
30*2500	30	2500	3°	≤450	20-1000	4	37	23500	370029003000
30*3200	30	3200	3°30’	≤450	20-1000	4	45	26000	420029003200
40*2500	40	2500	4°	≤450	20-1000	3	55	38000	360033003000
40*3200	40	3200	4°	≤450	20-1000	3	55	49000	430033003200

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
