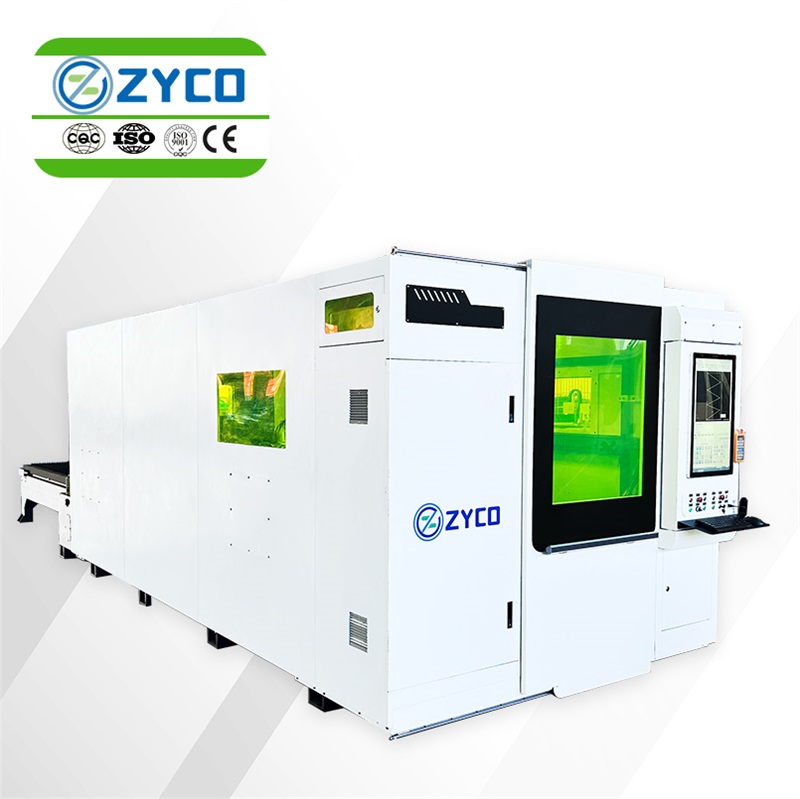

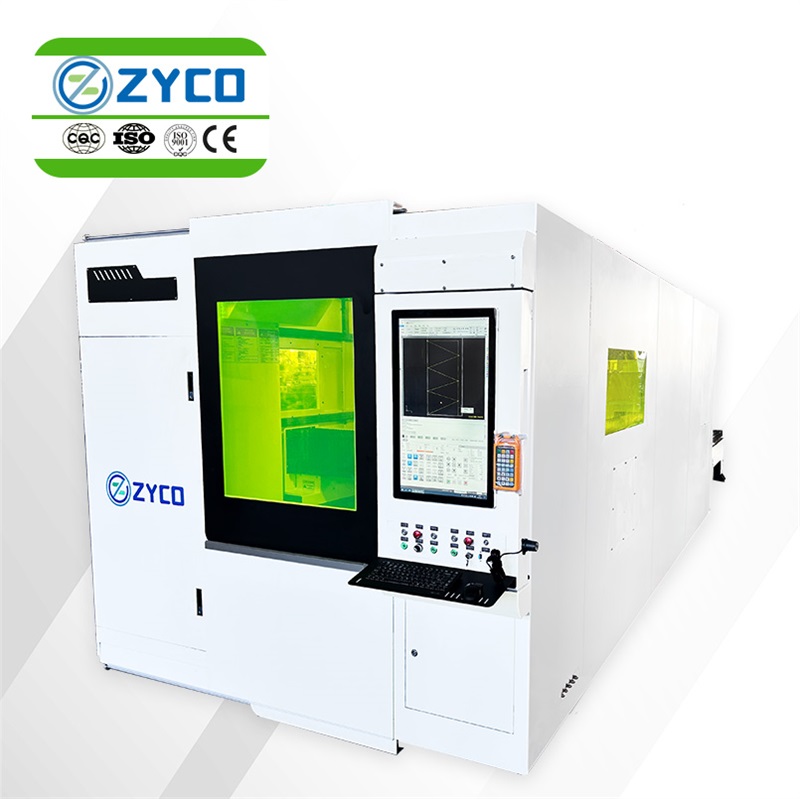

ZYCO 1000-12000w Easy to Operate full enclosure single plate steel cutting Laser cutting machine

ZYCO 1000-12000w Easy to Operate full enclosure single plate steel cutting Laser cutting machine

The fully enclosed series fiber laser cutting machine is equipped with a swap table and protective cover, which can complete the table switching in just 15 seconds. The cutting and loading processes can be carried out simultaneously, which can significantly improve production efficiency.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. The internal structure adopts a combination of hollow and fish-scale patterns, which enhances the structure's resistance to potential fire hazards.

2. The entire frame is treated with high-temperature annealing, followed by high-speed sandblasting and stress relief technology, which effectively prevents possible deformation of the bed and ensures that its shape remains intact even after 20 years of use.

3. Our equipment has high speed, excellent dynamic characteristics and rapid acceleration capabilities.

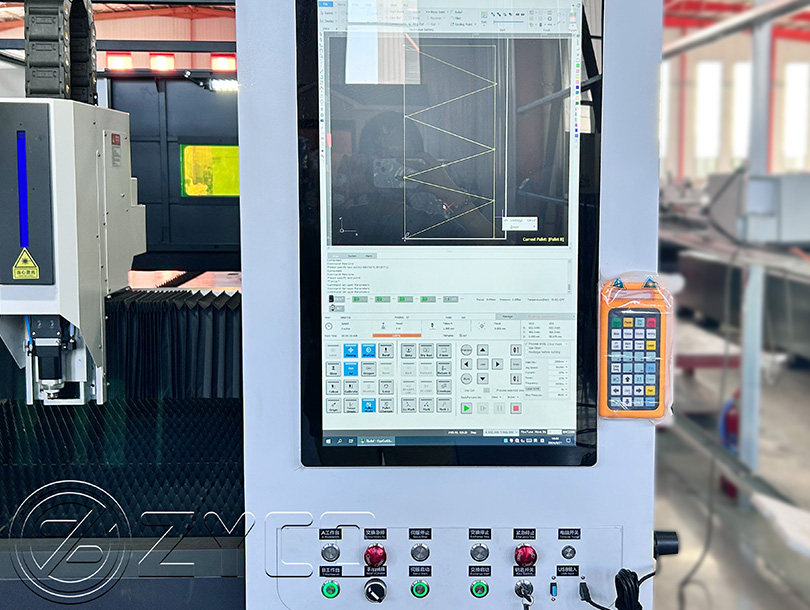

Control system

A fiber laser cutting software tailored for Chinese fiber laser cutting machines.

Easy installation, simple calibration, powerful functions and speed control adjustment by power.

Allows individual adjustment of imported linear speeds and has a powerful cutting process database.

View More +

Automatic lubrication

The timed automatic lubrication system automatically starts and distributes lubricating oil according to the machine's operating time, providing fast and convenient service and extending the service life of each part.

View More +

Cutting head

The autofocus laser cutting head is able to adjust its focus according to the thickness of the material used.

With anti-collision protection of the cutting head.

It is very suitable for multi-focus parts, which can reduce cutting time and improve cutting quality.

View More +

Water chiller

With over-temperature alarm function.

With flow protection function.

With water level protection and other safety alarm prompts.

View More +

Laser generator

Our laser system maintains a constant BPP (beam parameter product) over its full power range, ensuring excellent beam quality and small spot size.

High precision: The laser beam generated by the laser generator has extremely high energy density and extremely small divergence angle, which can achieve high-precision cutting in a very small range, with small cutting gap and high processing quality.

High efficiency: The laser generator provides a high-power laser beam, which greatly increases the cutting speed, shortens the production cycle, and improves production efficiency.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Bed welding structure

Original machine tool lubrication system

--The precision of the machine tool comes from the gear rack and linear guide.

--Gear rack: Determine the precision.

--Linear guide: Determine the direction.

Generally, the conventional oiling of machine tool manufacturers is once every 4 hours. There is no loop system in the oil circuit, and the oil is easy to overflov and drip onto the plate, affecting the cutting effect.However, our original and improved loop system can oil once every half an hour,shorten the oiling time, increase the oiling frequency, increase the number ofoiling times for gear racks and linear quides, reduce the wear of racks and guides, improve the precision, and extend the service life of the machine tool.

Product Parameters

1. Stainless steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥6KW)
Cutting Laser Power/Speed (m/min (w) /Board Thickness (mn)	1000	2000	3000	4000	6000	8000	10000	12000	15000
1	20-22	45-50	60-70	40-45	45-50	47-55	50-55	54-58	60-65
2	6.5-7.0	13-15	22-27	20-25	30-35	34-39	39-42	41-46	44-49
3	2.5-3.0	5.0-6.0	8.0-10	11-13	17-20	21-25	23-29	30-33	32-37
4	1.2-1.4	3-3.5	6.0~70	6.5-7	13-15	18-21	19-23	22-26	24-28
6		0.9-1.2	2.1-2.6	2.5-3	6-6.5	7-8.5	10-12	16	16-18
8		0.4-0.6	0.85-1.2	1.6-1.8	3.8-4.2	4.1-4.8	7-7.5	10	12-14
10		0.2-0.5	0.6~0.8	0.8-0.9	1.6-2.1	2.8-3.2	5-5.8	6-7	7-9
12			0.5-0.6	0.7-0.75	1.1-1.4	1.6-2.0	3.3-3.7	4-4.5	4.5-5
14				0.5-0.55	0.9-1.1	1.3-1.55	1.7-2.1	2.1-2.8	2.5-3.1
16					0.6-0.8	1.1-1.3	1.6-1.7	1.8-2.3	2-2.5
18					0.5-0.65	0.7-0.82	1.1-1.25	1.2-1.4	1.65-1.8
20					0.4-0.5	0.65-0.75	0.8-1.1	1.3-1.6	1.4-1.8
25						0.4-0.5	0.45-0.5	0.55-0.65	0.6-0.7
30						0.3-0.33	0.35-0.4	0.45-0.55	0.45-0.6
35							0.22-0.25	0.3-0.45	0.3-0.4
40								0.25-0.34	0.2-0.35
45								0.16-0.23	0.16-025
50									0.12-02
Note: The green fonts are stable cutting data under most production conditions; the blue fonts are cutting data that may be achieved under some better production conditions; the red fonts are extreme cutting data achieved under laboratory conditions.

2. Carbon steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥=6KW)
Cutting Laser power/Speed (m/min(w) /Board thickness (mm)	1000	2000		3000	4000	6000	8000	10000	12000	15000
1	22-25	42-47		48-55	42-45	45-48	46-52	49-55	50-58	55-60
2	5-6	5-6		5-6	18-21	29-35	32-37	34-39	35-41	36-42
3	2.8-3.0	4.0-4.5		3.5-4.3	4-4.5	4-5	4-5	4-5	4-5	26-31
4	2.2-2.4	3.6-4.0		3.2-4	3.5-4	3.5-4	3.5-4	3.5-4	3.5-4	19-22
6	1.3-1.6	2.2-2.7		2-2.5	2.4-2.7	2.8-3.3	2.8-3.1	2.8-3.2	2.8-3.3	14-17
8	1.0-1.2	1.4-1.8		1.8-2.4	2-2.3	2.1-2.4	2.1-2.45	2.1-2.45	2.1-2.6	2.1-2.6
10	0.8-1.0	1.1-1.5		1.4-1.8	1.8-2	2-2.2	2.0-2.3	2.1-2.5	2.1-2.5	2.1-2.6
12		0.96-1.2		0.9-1.1	1.5-1.6	1.9-2.0	1.9-2.0	1.9-2.1	1.9-2.1	1.85-2.1
14		0.9-1.1		0.75-0.9	1.2-1.4	1.5-1.7	1.6-1.75	1.7-1.85	1.66-1.75	1.7-18
16		0.7-0.8		0.7-0.8	1-1.1	1.25-1.35	1.45-1.6	1.5-1.6	1.55-1.65	1.6-1.7
18		0.6-0.7		0.6-0.8	0.8-0.95	1.15-1.3	1.2-1.45	1.35-1.4	1.4-1.55	1.5-1.6
20		0.5-0.6		0.6-0.75	0.6-0.7	0.9-1.0	1.0-1.2	1.1-1.3	12-1.3-	1.4-1.5
25				0.5-0.55	0.45-0.55	0.5-0.55	0.5-0.6	0.65-0.7	0.65-0.7	0.8-1.0
30							0.3-0.35	0.4-0.42	0.4-0.45	0.64-0.8
35							0.25-0.3	0.37-0.38	0.25-0.28	0.4
40								0.25-0.26	0.2-0.26	0.32
45									0.18-0.22	0.25
50									0.15	0.18
Note: 1) The green font is the stable cutting data under most production conditions; the blue font is the cutting data that may be achieved under some better production conditions; the red font is the limit cutting data achieved under laboratory conditions. 2) The underlined data is the nitrogen cutting data.

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
