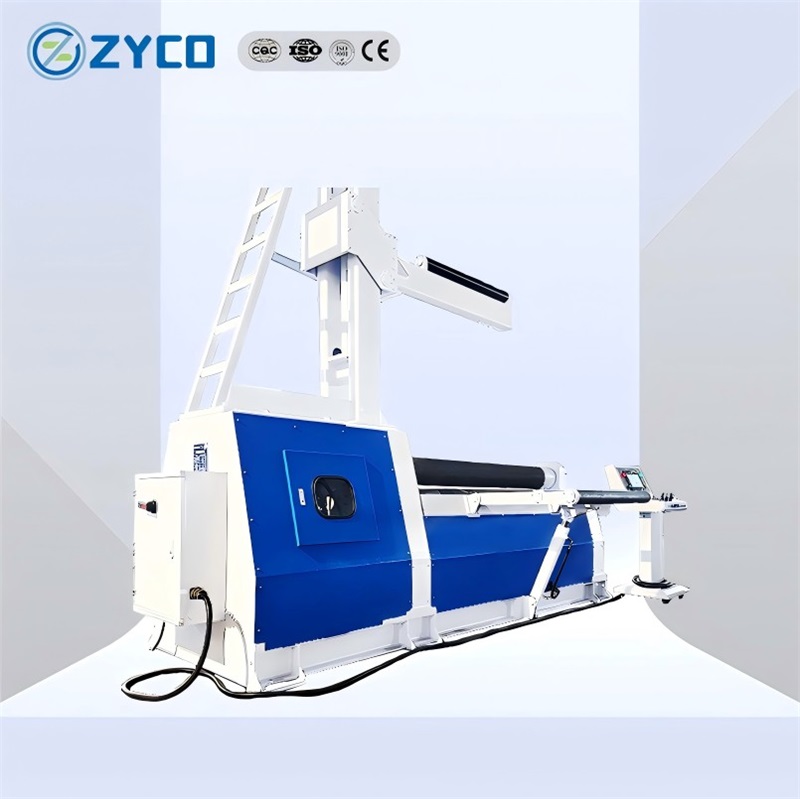

ZYCO W12 30*2500 CNC Four Roller Plate Automatic Hydraulic Roller for Steel Aluminium Iron

ZYCO W12 30*2500 CNC Four Roller Plate Automatic Hydraulic Roller for Steel Aluminium Iron

W12 series four-roller CNC plate rolling machine is widely used in shipbuilding, boiler, aviation, hydropower, chemical industry, metal structure and machinery manufacturing industries. This machine is suitable for bending and deforming metal plates, and can roll round, arc and conical workpieces within a certain range. We adopt the unique torsion axis synchronous structure in China. This design makes the rolling precision high and the roundness good, avoiding the problem of the slideway being easily worn by iron chips in the traditional sliding guide method, thereby improving the service life and precision of the machine.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
6500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High Safety Level

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Environmental protection and energy saving: The plate rolling machine is driven by a fully hydraulic motor. This design is not only environmentally friendly and energy-saving, but also effectively reduces energy consumption.

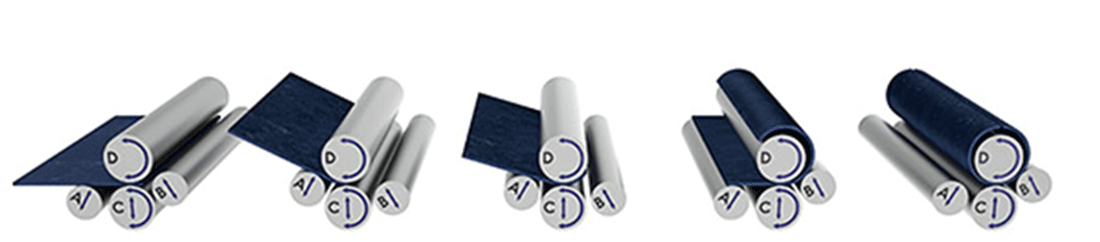

2. Efficient pre-bending effect: The W12 four-roller plate rolling machine has short straight edges and good pre-bending effect. It is particularly suitable for rolling conical tubes. It can complete bilateral pre-bending and plate rolling in one pass. It is fast and efficient, and only one operator is required to complete the operation.

3. Automation and intelligence: The equipment has automatic alignment and clamping functions to prevent the plate from sliding and deviating. In addition, it also has anti-overload and hydraulic protection functions to ensure safe operation.

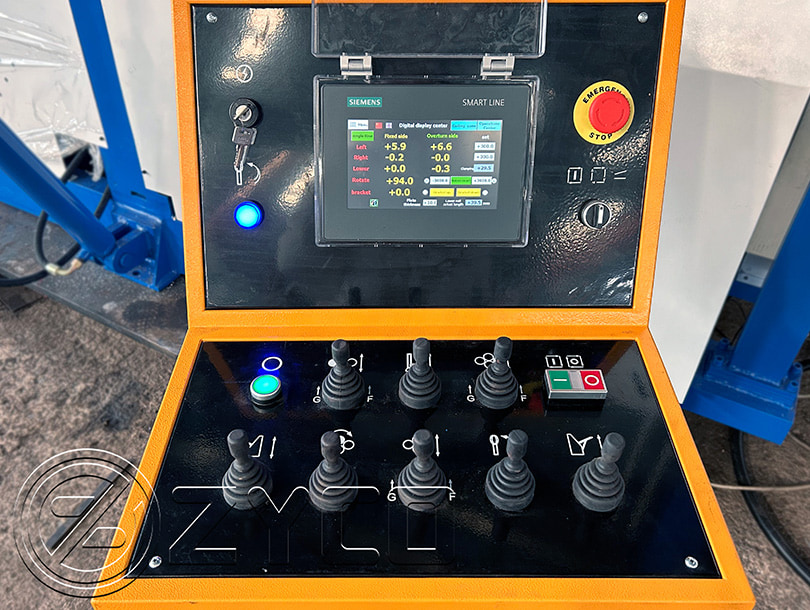

Control system

Siemens CNC system, which can store automatic rolling data of hundreds of different workpieces, and realize one-key call and one-key start.

The CNC system not only supports automatic rolling processing of circular shapes, but also meets the automatic rolling of oblate, elliptical and other workpieces.

The system is stable and reliable, and convenient after-sales.

View More +

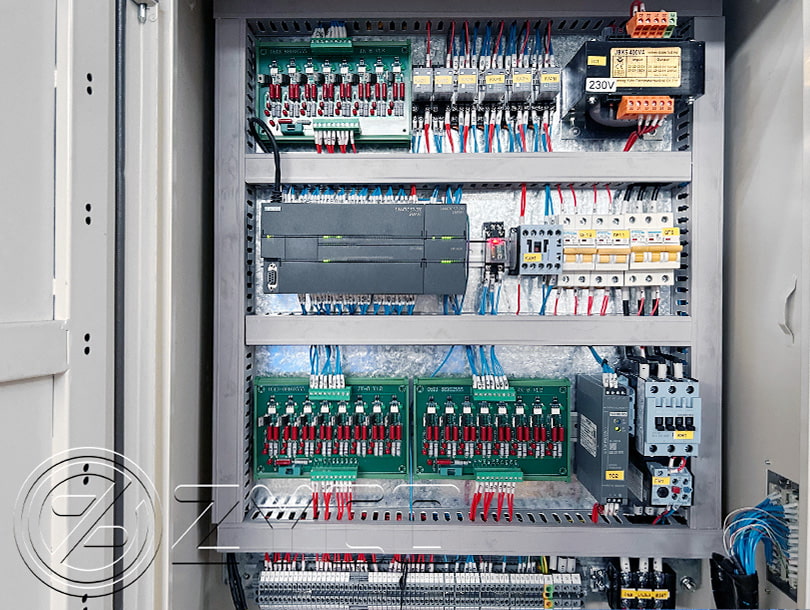

Electrical cabinet

Schneider electrical components, high quality and long life.

Control voltage and frequency, and the machine operation is sensitive.

The electrical cabinet protects the circuit through fuses, circuit breakers, fuses and other protective devices to prevent overload, short circuit and other faults.

View More +

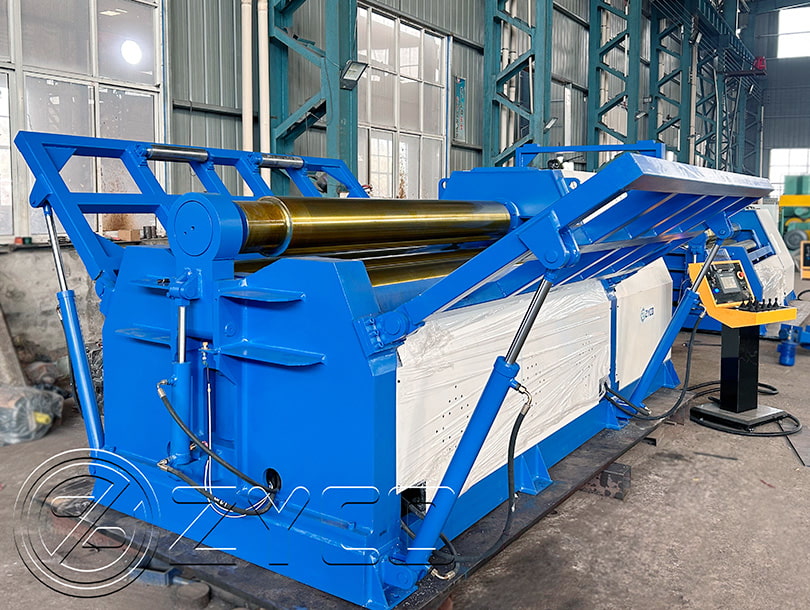

Frame

High-strength cast steel or welded structure, precision processing and heat treatment, high strength and long life.

The frame can withstand huge working pressure without deformation, ensuring the continuous stability of the rolling operation.

View More +

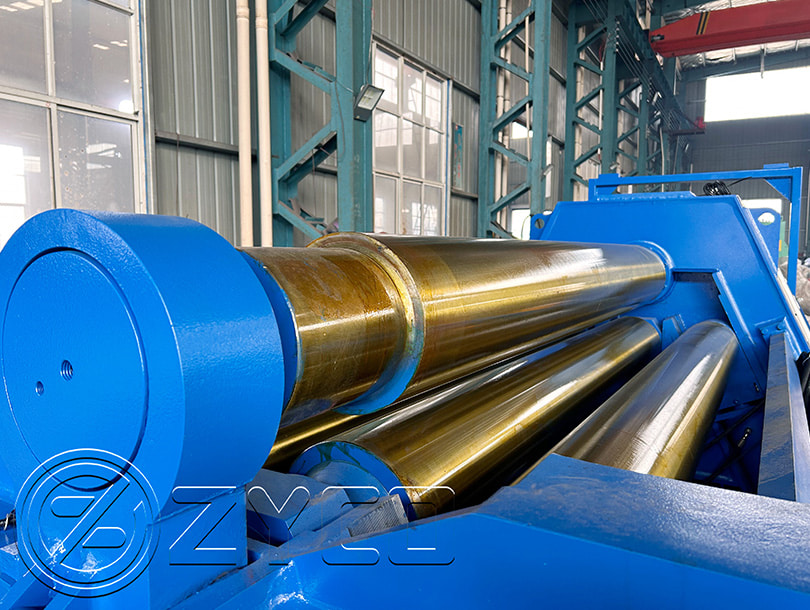

Roller

Special steel is heat-treated, with high hardness and no deformation.

Fine processing and high precision.

Optional chrome plating process, beautiful and wear-resistant.

View More +

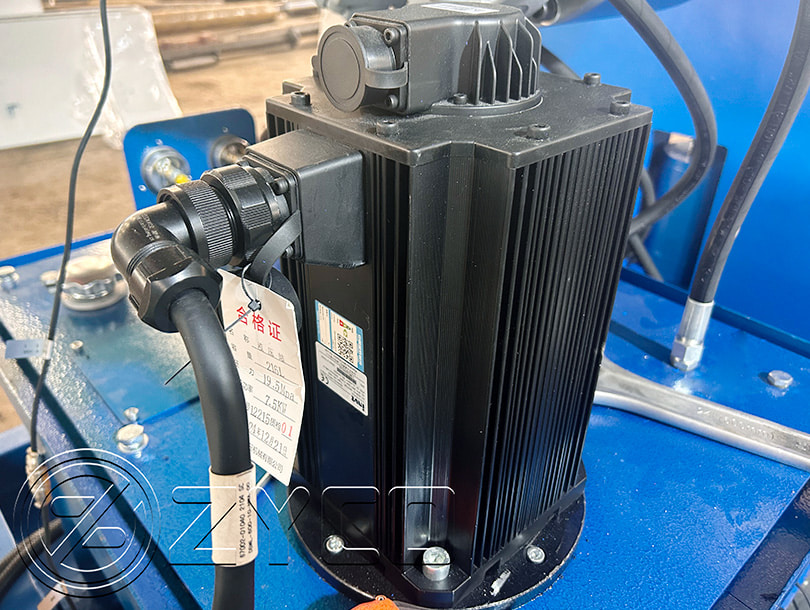

Motor

Low noise, high efficiency, environmental protection and energy saving.

High reliability, low maintenance cost and wide applicability.

Simple structure and convenient control.

View More +

Sample Display

For more detailed specifications, please don't hesitate to contact us.

Model	Max -Bending thickness	Pre-bending thickness	Max Working length of rolls	Yield limit	Top roller diameter	Bottom roller diameter	Side roller diameter	Main power
	(mm)	(mm)	(mm)	(Mpa)	(mm)	(mm)	(mm)	(Kw)
W12-4*2000	4	3.5	2050	245	160	140	120	3
W12-6*2000	6	5	2050	245	190	170	150	4
W12-8*2000	8	6.5	2050	245	210	190	170	5.5
W12-10*2000	10	8	2050	245	230	210	190	7.5
W12-12*2000	12	10	2050	245	270	250	210	11
W12-16*2000	16	13	2050	245	300	270	220	11
W12-20*2000	20	16	2050	245	330	300	240	11
W12-25*2000	25	20	2050	245	360	330	250	15
W12-30*2000	30	25	2050	245	390	360	300	18.5
W12-35*2000	35	28	2050	245	430	390	330	22
W12-40*2000	40	32	2050	245	460	420	360	30
W12-45*2000	45	36	2050	245	510	460	390	37
W12-50*2000	50	40	2050	245	550	510	420	45

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
