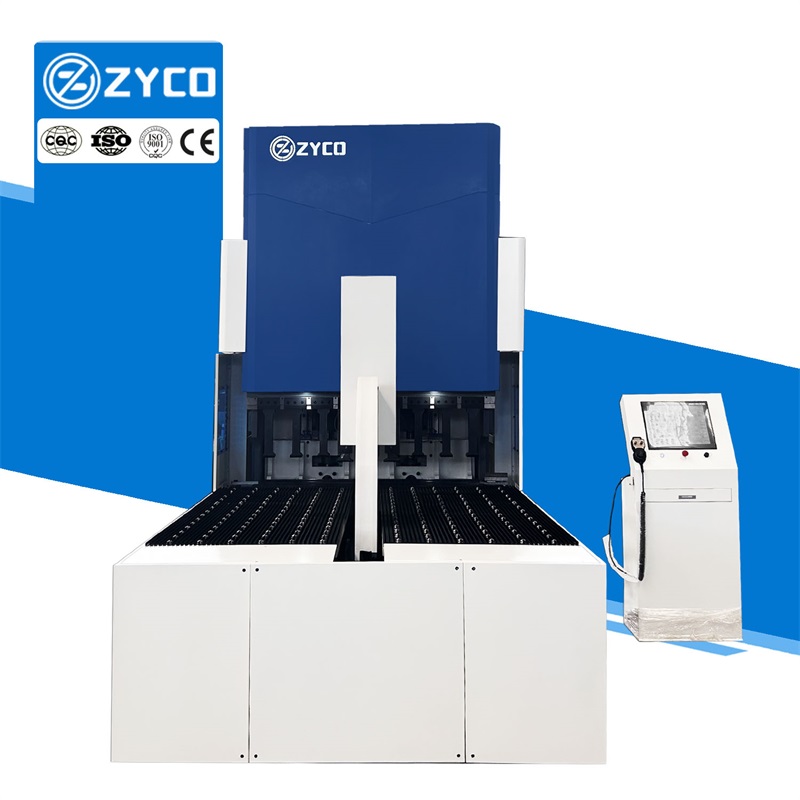

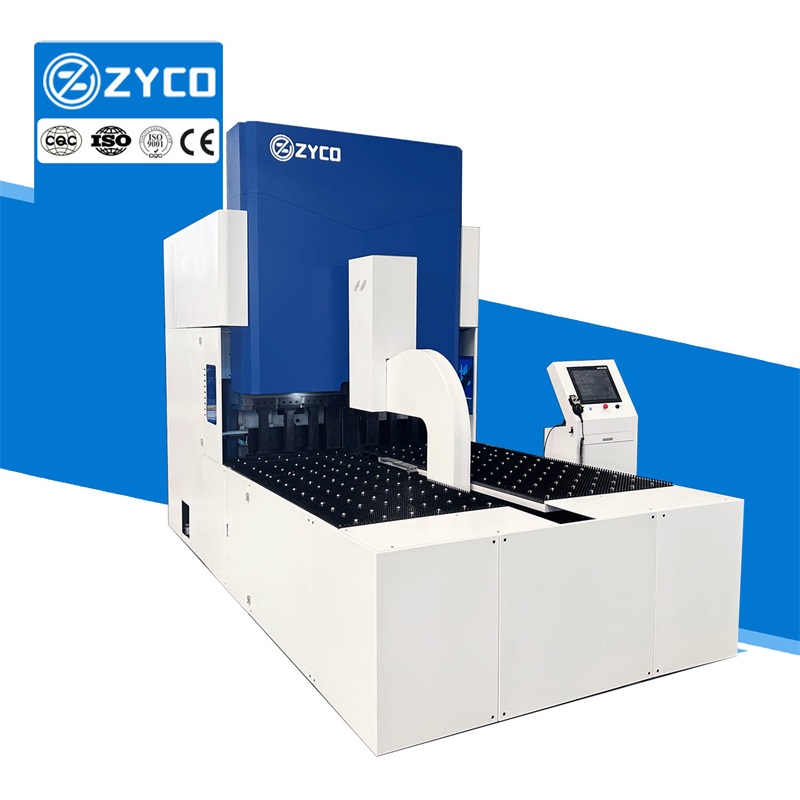

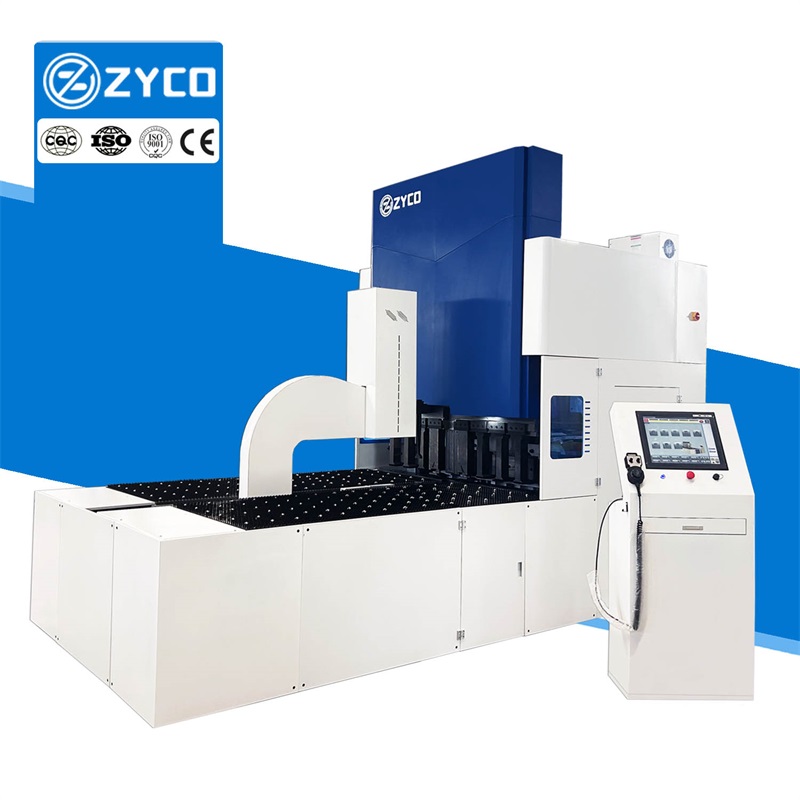

ZYCO Cnc Fully Automatic Sheet Metal Bending Center Panel Bending Machine

ZYCO Cnc Fully Automatic Sheet Metal Bending Center Panel Bending Machine

The flexible bending center is fully automated and extremely fast during the bending process. It uses CNC technology to accurately control the bending angle and bending radius, ensuring the production accuracy of the product and is suitable for mass production.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
12000kg
Warranty time :
2 years
Automatic level :
Automatic
Material / metal processed :
Brass / Copper, Stainless Steel, Carbon steel, Aluminum

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1: The flexible bending center has low technical requirements for workers. Ordinary workers can start work after training. The equipment automatically completes positioning and bending, which greatly saves labor costs and labor intensity.

2: The flexible bending center uses a universal bending mold, which can process a variety of materials and complex shapes of workpieces and has a wide range of adaptability.

3: The bending process is fully automated, and there is no need to manually hold the workpiece, reducing safety hazards.

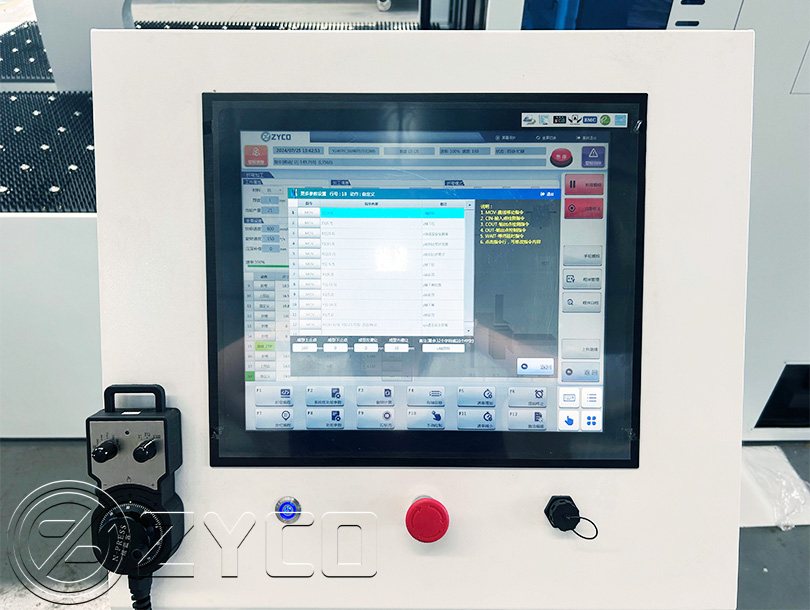

Control system

The control system realizes true multi-axis synchronous linkage, ensuring stable bending action and strong mechanical operation coordination.

Simulated bending of complex products can be performed to reduce material waste.

View More +

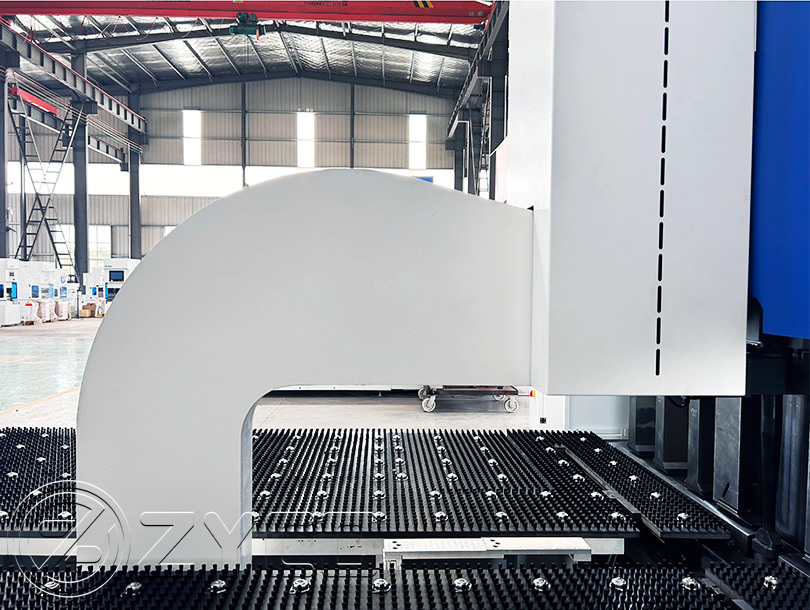

Press arm

Patented configuration, highly praised.

Safe and reliable feeding, extremely high precision.

View More +

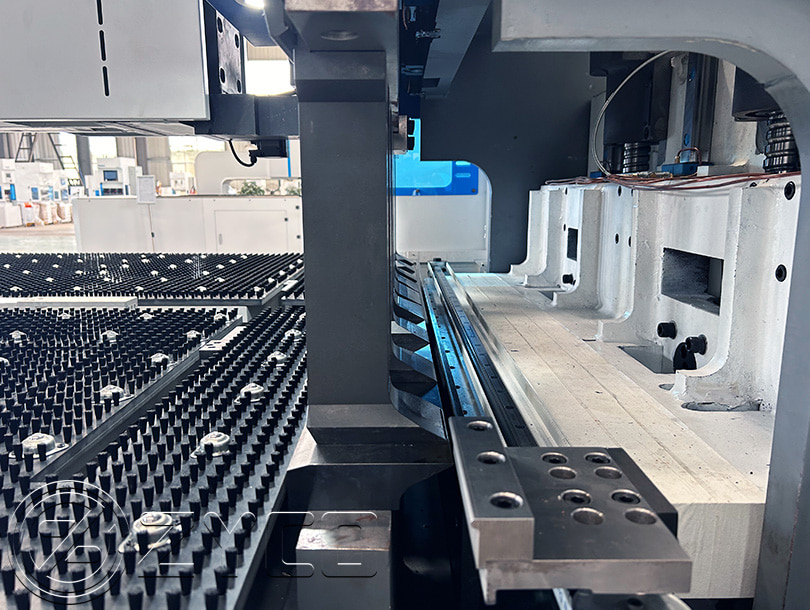

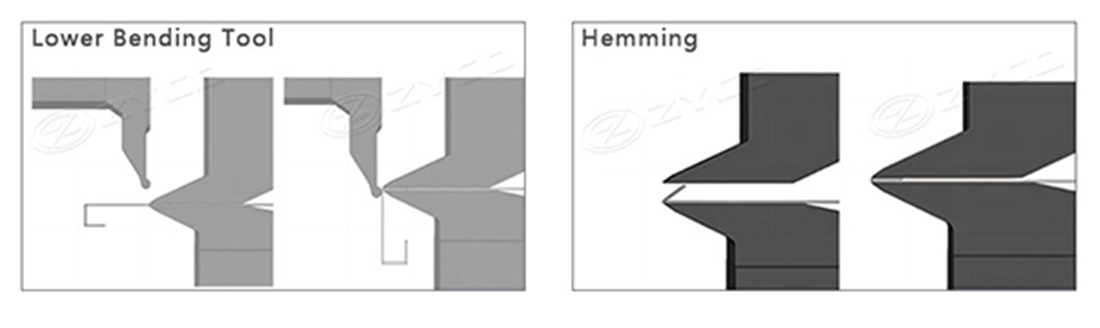

Tools

High-strength, high-precision molds.

Customizable avoidance molds to improve production efficiency.

View More +

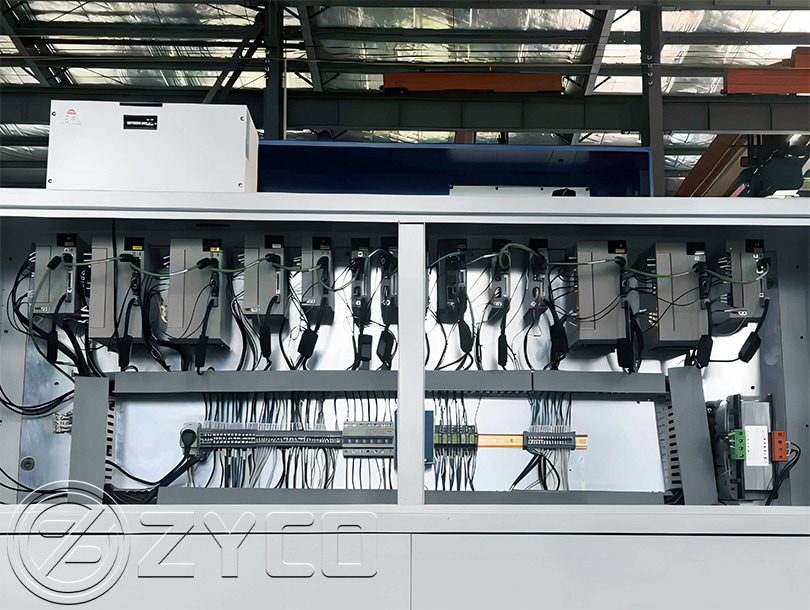

Electrical components

Schneider electrical components, high quality and long life.

Control voltage and frequency, and the machine operation is sensitive.

The electrical cabinet protects the circuit through protective devices such as fuses, circuit breakers, and fuses to prevent overload, short circuit and other faults.

View More +

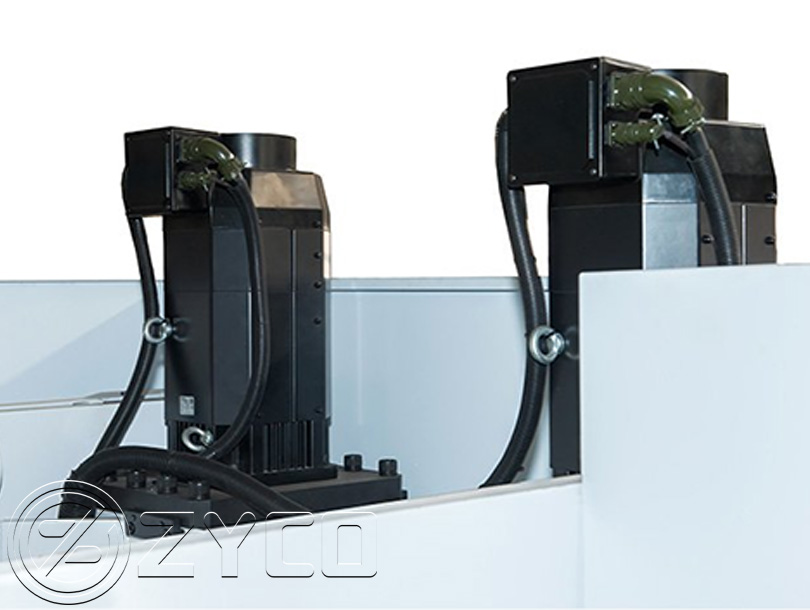

Servo motor drive

The servo electric bending machine is a fast and precise bending solution without hydraulic power. This technology guarantees productivity, precision, repeatability and reliability.

Low failure rate, high performance.

Fault codes can be monitored, errors can be corrected in time.

View More +

High-precision plate Press Brake equipment

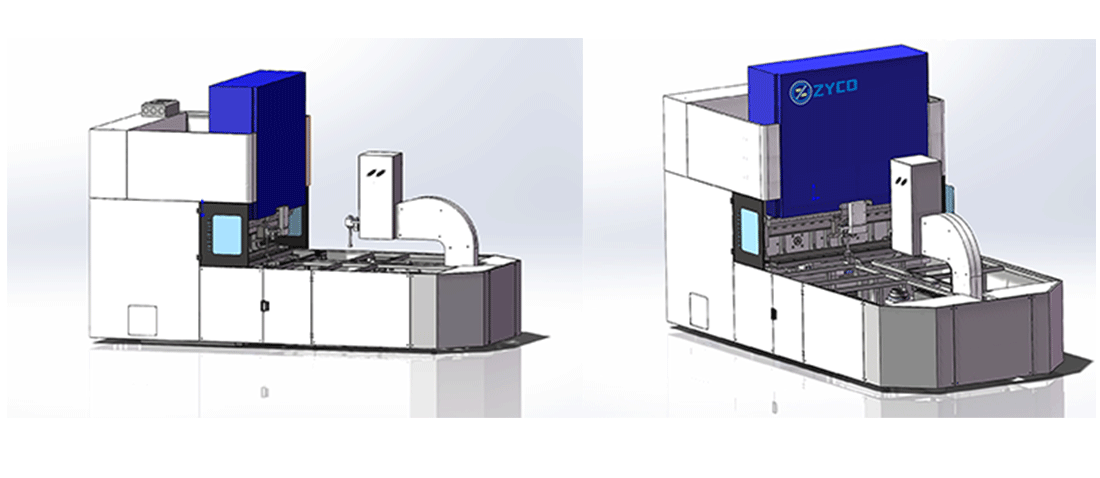

3D Model Display

For more detailed specifications, please don't hesitate to contact us.

Processing Workpiece Drawing

Bending Part Demonstration

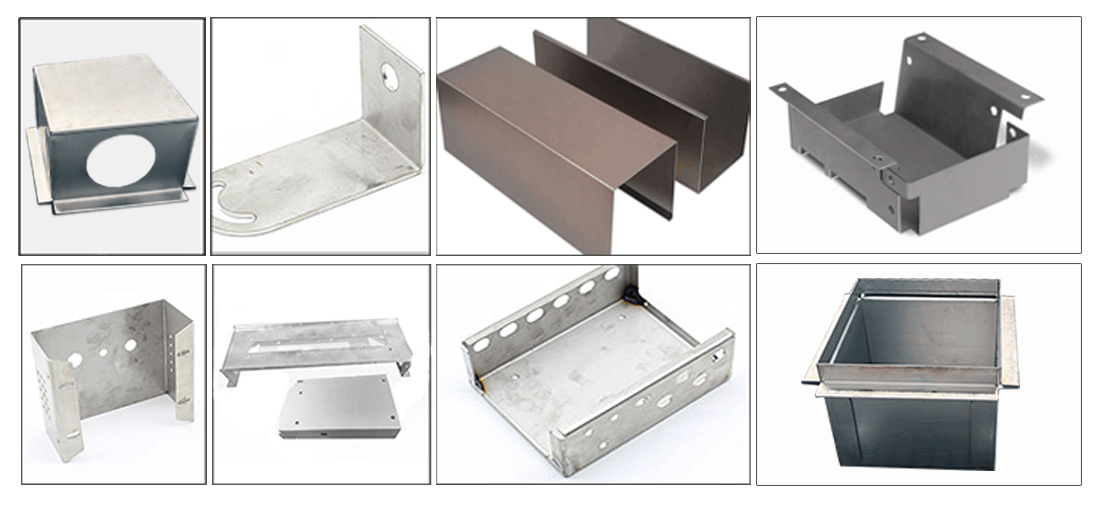

Sample display

Product Parameters

NO.	Model		Unit	ZYCO-C1200	ZYCO-C1500	ZYCO-C2000	ZYCO-C2500
1	Bending Length		mm	1200	1500	2000	2500
2	Bending Width		mm	1000	1500	2000	2500
3	Bending Heigh		mm	120	170(300 can be customized)	170(300 can be customized)	170(330 can be customized)
4	Min Forming Size		mm	270*200	310*230	400*280	280*400
5	Min Radiu		mm	1.2	1.2	1.2	1.2
6	Bending Speed		s	0.2/knife	0.2/knife	0.2/knife	0.2/knife
7	Angle		°	0-360	0-360	0-360	0-360
8	Material Thickness	Aluminum plate	mm	2	2	2	3
		Cold plate	mm	1.5	1.5	1.5	1.5
		Stainless steel	mm	0.8	1	1.2	1.5
9	Bending system			Star300-LGx
10	Operating System		OS	Win7 Win7+OS+suction cup Win7+OS Win7+OS+press arm
11	Axis		axes	Standard 10 axes	Standard 10 axes	Standard 13 axes	Standard 13 axes
12	Machine Dimension	Length	mm	3000	3700	5000	5700
		Width		1500	1800	2200	3000
		Height		2050	2500	2800	2800
13	Machine Weigh		Kg	6500	10000	16000	22000
14	Total Power		Kw	14	35	35	35

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
