What are the advantages of CNC concentric molds for Press Brake?

Metal forming technology is a very important part of mechanical manufacturing. Among them, bending technology is one of the common metal forming methods. In order to improve the accuracy of the bending process, CNC concentric molds are indispensable. This article will discuss in depth the working principle, characteristics and application advantages of CNC concentric molds.

Working principle of CNC concentric molds

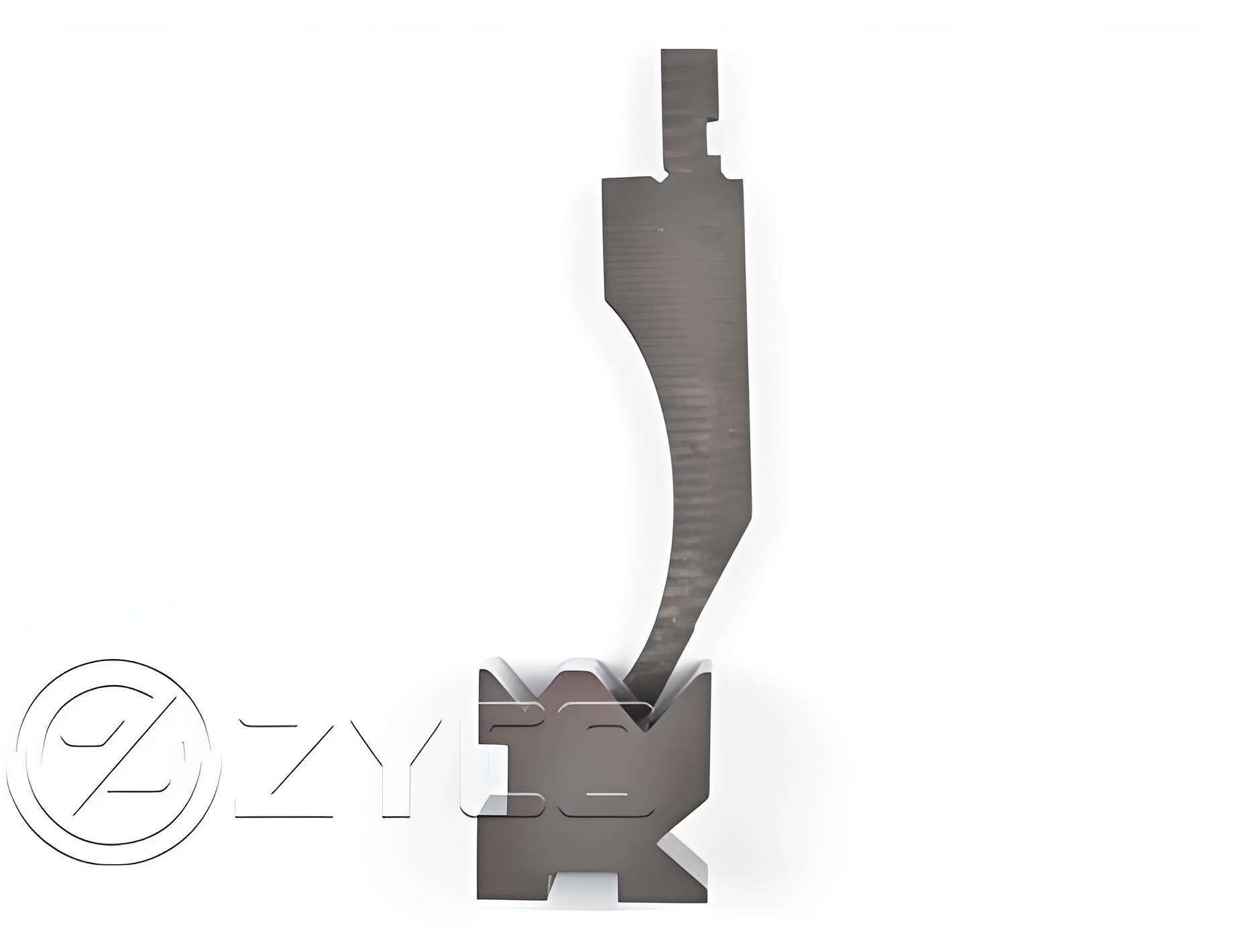

CNC concentric molds are mainly composed of upper molds, lower molds and clamping devices. Its working principle is as follows:

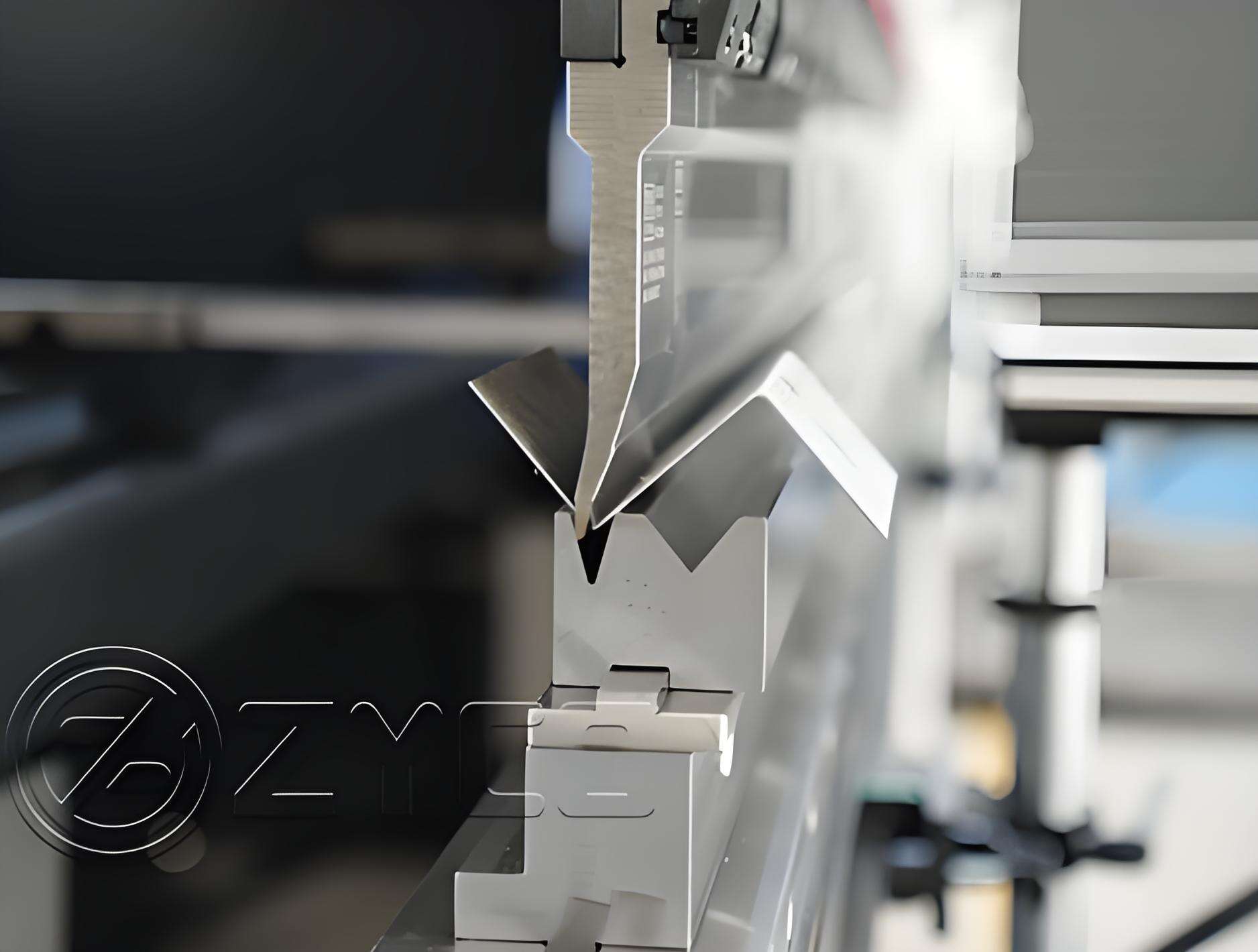

1. Under the control of the CNC system, the upper mold moves in a synchronous and precise manner to form the required bending angle.

2. The upper mold moves with the center of the lower mold notch as the target to ensure the symmetry of the force on the metal parts during the bending process, thereby improving the forming accuracy.

Characteristics of CNC concentric molds

1. High precision: uniform size, produced based on international standard size to ensure concentricity.

2. High efficiency: there is no need to find the center point when replacing the lower mold notch, and high precision also improves work efficiency.

Advantages of CNC concentric molds in metal forming

1. Improve product quality: Concentric bending ensures the shape accuracy and surface quality of the workpiece.

2. Reduce production costs: High degree of automation greatly reduces labor costs.

3. Enhance production flexibility: The bending parameters of different workpieces can be quickly switched, which improves production flexibility.

In short, as a major innovation in the field of metal forming, CNC concentric molds play an important role in improving product quality, reducing production costs, and enhancing production flexibility. With the continuous development of the manufacturing industry, CNC concentric molds will surely play their unique advantages in a wider range of applications.
